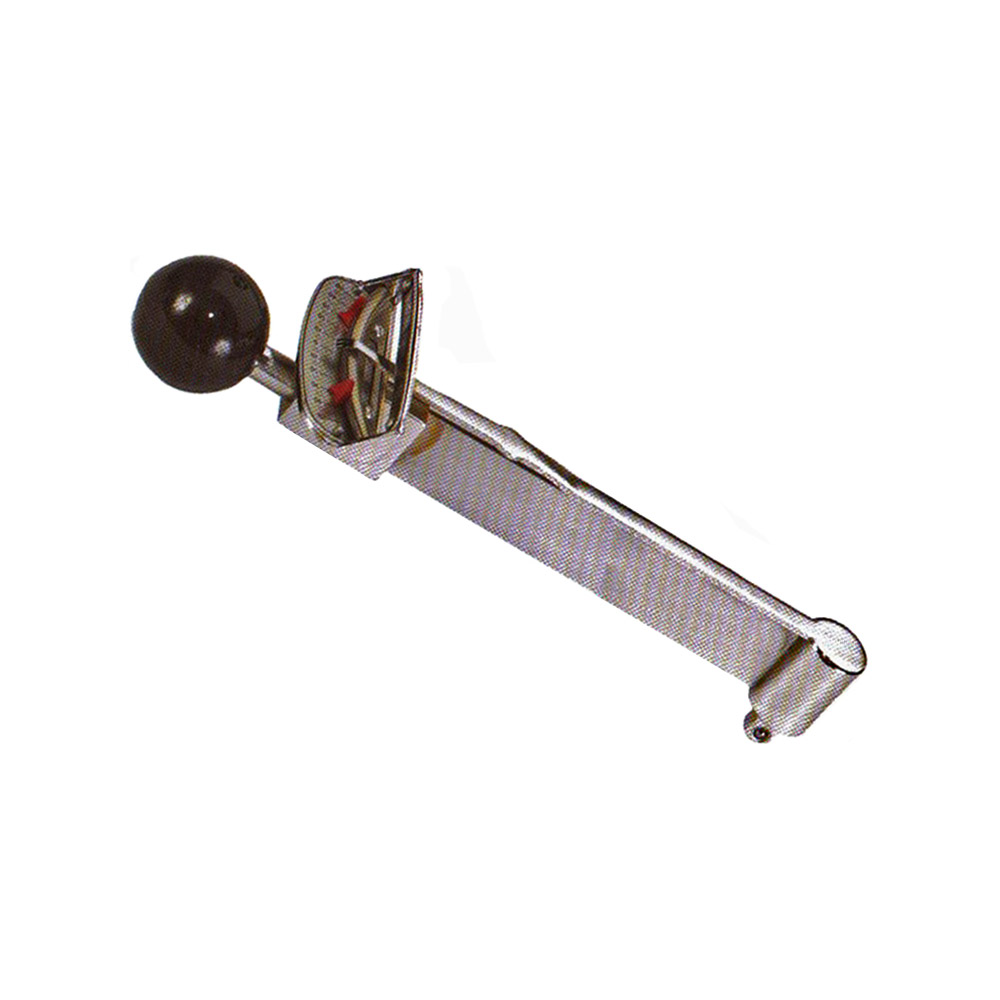

850233 Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE

Sturtevant Richmont

850233 Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE

Price: $322.50

Part Number: 850233

Sturtevant Richmont Flat Beam M Series torque wrench. Model: M 32 IO Torque Capacity: 0-32 in. ozs. Steps Of Graduations: 2 in. ozs. Square Drive: 1/4” Lever Arm Distance: 6.0” Weight: 0.2 lbs.

850233 Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE Description

Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE Description

Incredibly durable design – actual service life frequently measured in decades!
Very low cost of ownership – exceptional accuracy retention permits extended calibration intervals, and they are virtually maintenance and repair free!
Ideal for prevailing-torque and destructive testing applications.
Low mass/low inertia design of pointers helps eliminate reading distortion.
Memory feature consists of fingers which follow a track in the scale and remain in place to indicate maximum torque achieved.
Peak torque indicated on scale is accurate, even on destructive testing applications.
Pivoted handle concentrates load at precise point on lever to assure torque accuracy.
Meets or exceeds ASME B107.300 and ISO 6789.
Accuracy of all flat beams is +/- 2&#37 of indicated value from 20&#37 to 100&#37 of accuracy, in both directions.
Includes free ISO/IEC 17025 tabulated certification!

Technical Specifications

Additional information

Model	M 32 IO
Torque Capacity	0-32 in. ozs.
Steps Of Graduations	2 in. ozs.
Square Drive	1/4''
Lever Arm Distance	6.0''
Overall Weight (lbs.)	0.2 lbs.

Product Description

850233 Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE

Sturtevant Richmont Flat Beam M Series Torque Wrench, SAE Description

Incredibly durable design – actual service life frequently measured in decades!
Very low cost of ownership – exceptional accuracy retention permits extended calibration intervals, and they are virtually maintenance and repair free!
Ideal for prevailing-torque and destructive testing applications.
Low mass/low inertia design of pointers helps eliminate reading distortion.
Memory feature consists of fingers which follow a track in the scale and remain in place to indicate maximum torque achieved.
Peak torque indicated on scale is accurate, even on destructive testing applications.
Pivoted handle concentrates load at precise point on lever to assure torque accuracy.
Meets or exceeds ASME B107.300 and ISO 6789.
Accuracy of all flat beams is +/- 2&#37 of indicated value from 20&#37 to 100&#37 of accuracy, in both directions.
Includes free ISO/IEC 17025 tabulated certification!

Technical Specifications
