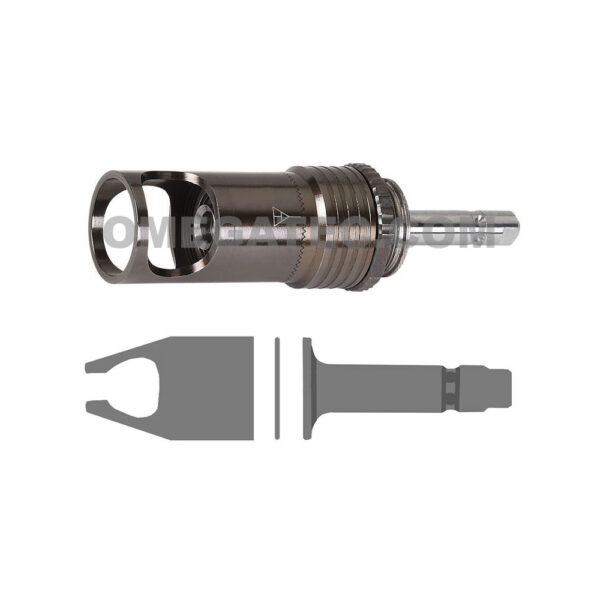

ATI444C3 ATI Microstop Cage. Depth Adjustment: .0005” Max Cutter Diameter: 5/16” Shaft Travel: 5/16” Spindle Thread: 1/4-28 Female Max RPM: 10000 Skirt Type: Close Shaft Shank: Quick Change
The ATI444C3 ATI Microstop Cage is an expertly crafted tool built for light to medium-duty production environments, capable of operating at speeds up to 3,000 RPM. With a bronze bushing for optimal shaft support and a heavy-duty ball thrust bearing, it ensures exceptional depth repeatability, making it ideal for precision machining.
The fail-safe design, featuring an integrated shoulder on the shaft, provides additional security, while the right-hand threaded lock nut prevents jamming in the adjustment mechanism. Durable and reliable, the ATI444C3 ATI Microstop Cage guarantees consistent, high-quality performance in demanding applications, ensuring long-term accuracy and ease of use.

| Depth Adjustment | .0005'' |
|---|---|
| Max Cutter Diameter | 5/16'' |
| Shaft Travel | 5/16'' |
| Spindle Thread | 1/4-28 Female |
| Max RPM | 10000 |
| Skirt Type | Close |
| Shaft Shank | Quick Change |
