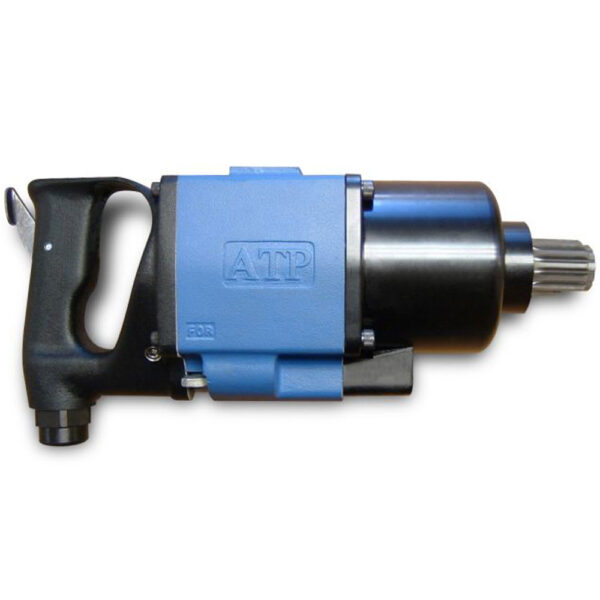

ATP1040EO-5S ATP 1040 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 1600 ft-lbs / 2169 Nm Max Torque: 2000 ft-lbs / 2711 Nm Tool Duty Rating: Super Duty Handle Type: End Grip O-T Throttle Type: Outside Trigger
The ATP1040EO-5S ATP 1040 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is designed for high-performance and durability. It features a high output twin hammer mechanism and bronze end plates that enhance motor longevity. The steel hammer case ensures robust protection, while the three-piece housing facilitates easy repairs.
Additionally, the integral muffler effectively reduces noise, making it suitable for demanding applications. The ATP1040EO-5S ATP 1040 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive Drive, is a reliable and efficient tool for professionals seeking top-notch performance and durability.
| Working Torque | 1600 ft-lbs / 2169 Nm |
|---|---|
| Max Torque | 2000 ft-lbs / 2711 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | End Grip O-T |
| Throttle Type | Outside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 12.40'' / 315mm |
| Weight | 24lbs / 10.80kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 58 cfm / 1, 642 l/min |
| OEM | Ingersoll Rand |
| Comparable OEM Model | IR2940A1 |
Additionally, the integral muffler effectively reduces noise, making it suitable for demanding applications. The ATP1040EO-5S ATP 1040 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive Drive, is a reliable and efficient tool for professionals seeking top-notch performance and durability.
| Working Torque | 1600 ft-lbs / 2169 Nm |
|---|---|
| Max Torque | 2000 ft-lbs / 2711 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | End Grip O-T |
| Throttle Type | Outside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 12.40'' / 315mm |
| Weight | 24lbs / 10.80kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 58 cfm / 1, 642 l/min |
| OEM | Ingersoll Rand |
| Comparable OEM Model | IR2940A1 |
