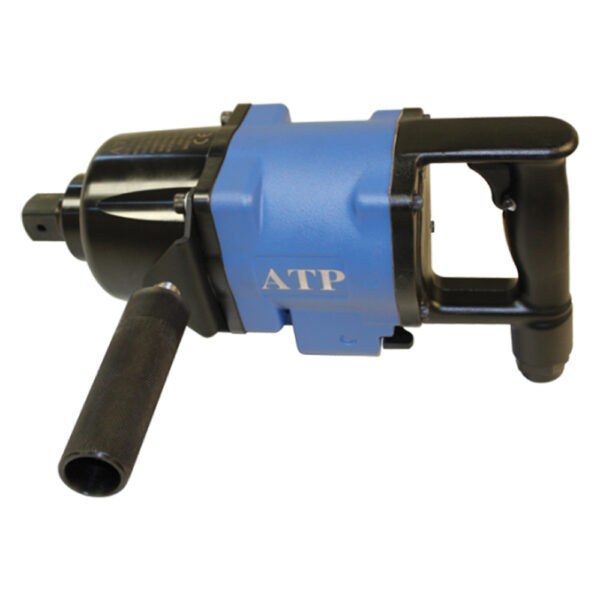

ATP1045EO-5S ATP 1045 Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 2700 ft-lbs / 3661 Nm Max Torque: 3300 ft-lbs / 4474 Nm Tool Duty Rating: Super Duty Handle Type: Grip Throttle Type: Outside Trigger
The ATP1045EO-5S ATP Grip Handle Outside Trigger Impact Wrench, #5 Spline Square Drive is a powerful tool designed for high-performance and durability. Featuring a high output twin hammer mechanism and bronze end plates, it ensures increased motor longevity. The high output 7-vane motor provides exceptional power, while the anti-corrosion package enhances its durability in harsh conditions.
The steel clutch housing and three-piece housing design make it easy to repair and maintain. The ATP1045EO-5S ATP Grip Handle Outside Trigger Impact Wrench, #5 Spline Square Drive is ideal for demanding applications, offering reliability and efficiency.
| Working Torque | 2700 ft-lbs / 3661 Nm |
|---|---|
| Max Torque | 3300 ft-lbs / 4474 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Grip |
| Throttle Type | Outside Trigger |
| Drive Size Spline | #5 |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 14.3'' / 363.3mm |
| Weight | 25.06lbs / 11.36kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 75 cfm / 2123 l/min |
| OEM | ATP |
| Comparable OEM Model | IR3942A1Ti |
The steel clutch housing and three-piece housing design make it easy to repair and maintain. The ATP1045EO-5S ATP Grip Handle Outside Trigger Impact Wrench, #5 Spline Square Drive is ideal for demanding applications, offering reliability and efficiency.
| Working Torque | 2700 ft-lbs / 3661 Nm |
|---|---|
| Max Torque | 3300 ft-lbs / 4474 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Grip |
| Throttle Type | Outside Trigger |
| Drive Size Spline | #5 |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 14.3'' / 363.3mm |
| Weight | 25.06lbs / 11.36kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 75 cfm / 2123 l/min |
| OEM | ATP |
| Comparable OEM Model | IR3942A1Ti |
