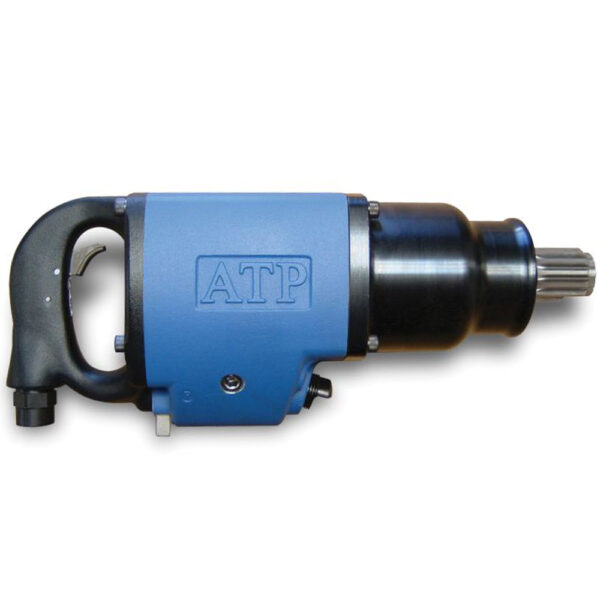

ATP1520EI-5S ATP 1520 Series Grip Handle Inside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 2500 ft-lbs / 3400 Nm Max Torque: 3000 ft-lbs / 4067 Nm Tool Duty Rating: Super Duty Handle Type: End Grip I-T Throttle Type: Inside Trigger
The ATP1520EI-5S ATP 1520 Series Grip Handle Inside Trigger Impact Wrench, #5 Spline Drive is engineered for exceptional power and durability. Featuring a two jaw clutch that transfers high power efficiently, this wrench excels in both hard and soft draw applications. Its steel clutch housing and three-piece design ensure long-lasting performance and ease of repair.
The integral muffler reduces noise, making it suitable for various environments. The ATP1520EI-5S ATP 1520 Series Grip Handle Inside Trigger Impact Wrench, #5 Spline Drive, is a reliable choice for professionals needing robust and efficient tools.
| Working Torque | 2500 ft-lbs / 3400 Nm |
|---|---|
| Max Torque | 3000 ft-lbs / 4067 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | End Grip I-T |
| Throttle Type | Inside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Two Jaw |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 14.70'' / 373.3mm |
| Weight | 33.7lbs / 15.20kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 70 cfm / 1, 982 l/min |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP6120-PASEL |
The integral muffler reduces noise, making it suitable for various environments. The ATP1520EI-5S ATP 1520 Series Grip Handle Inside Trigger Impact Wrench, #5 Spline Drive, is a reliable choice for professionals needing robust and efficient tools.
| Working Torque | 2500 ft-lbs / 3400 Nm |
|---|---|
| Max Torque | 3000 ft-lbs / 4067 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | End Grip I-T |
| Throttle Type | Inside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Two Jaw |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 14.70'' / 373.3mm |
| Weight | 33.7lbs / 15.20kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 70 cfm / 1, 982 l/min |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP6120-PASEL |
