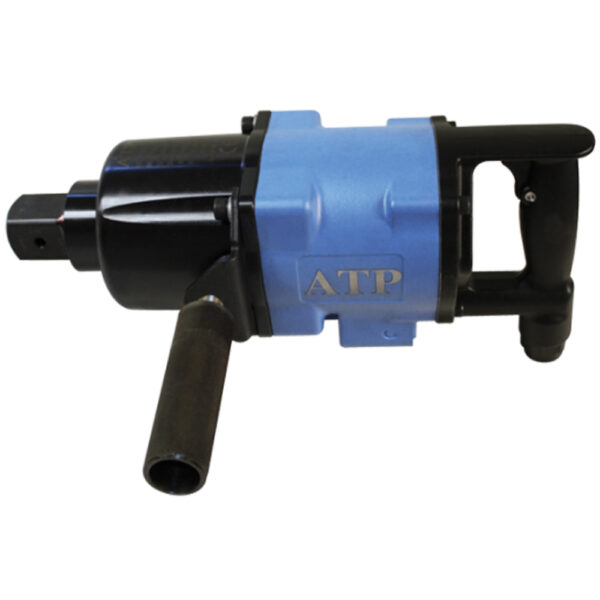

ATP1555EO-5S ATP 1555 Magnum Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive. Working Torque: 3200 ft-lbs / 4339 Nm Max Torque: 4200 ft-lbs / 5694 Nm Tool Duty Rating: Super Duty Handle Type: Grip Throttle Type: Outside Trigger
The ATP1555EO-5S ATP 1555 Magnum Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is engineered for exceptional performance and durability. Featuring a high output twin hammer mechanism and bronze end plates, it ensures increased motor longevity. The high output 7-vane motor delivers robust power, while the anti-corrosion package enhances durability. The steel clutch housing provides additional strength, and the three-piece housing design allows for easy repairs.
The ATP1555EO-5S ATP 1555 Magnum Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is a reliable choice for demanding applications, offering superior performance and ease of maintenance.
| Working Torque | 3200 ft-lbs / 4339 Nm |
|---|---|
| Max Torque | 4200 ft-lbs / 5694 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Grip |
| Throttle Type | Outside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 16.8'' / 427.6mm |
| Weight | 35.51lbs / 16.15kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 90 cfm / 2548 l/min |
| OEM | ATP |
| Comparable OEM Model | IR3955A1Ti |
The ATP1555EO-5S ATP 1555 Magnum Series Grip Handle Outside Trigger Impact Wrench, #5 Spline Drive is a reliable choice for demanding applications, offering superior performance and ease of maintenance.
| Working Torque | 3200 ft-lbs / 4339 Nm |
|---|---|
| Max Torque | 4200 ft-lbs / 5694 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Grip |
| Throttle Type | Outside Trigger |
| Drive Size | #5 Spline |
| Impact Mechanism / Clutch | Twin Hammer |
| Socket Retainer | Button |
| Housing Construction | 3 Piece |
| Length | 16.8'' / 427.6mm |
| Weight | 35.51lbs / 16.15kg |
| Air Inlet NPT | 1/2'' |
| Min Hose ID | 3/4'' / 19mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 90 cfm / 2548 l/min |
| OEM | ATP |
| Comparable OEM Model | IR3955A1Ti |
