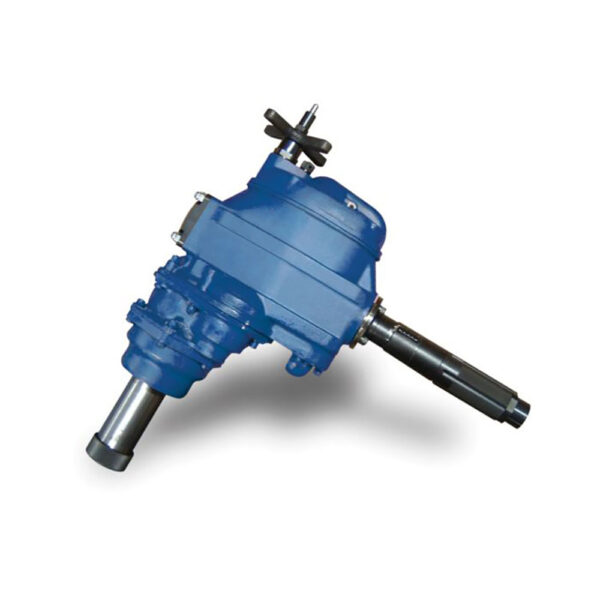

ATP3500RAFYM ATP #5 Morse Taper Drill, 60RPM. Free Speed: 60RPM Drilling Capacity (Steel): Heavy Reaming Capacity (Steel): Heavy Reversible: Yes Spindle Attachment: 5 Morse Taper Net Weight: 69lbs / 31.40kg Maximum Power: 5.9hp / 4.43kW
The ATP3500RAFYM ATP #5 Morse Taper Drill, 60RPM is engineered for precision, power, and durability, making it a top choice for professionals. It features a reversible self-closing roll throttle with reverse, providing excellent control and safety during operation. The governor-controlled motor ensures that speed and power are consistently maintained under load, delivering reliable performance in demanding tasks.
A feed screw offers precise downforce for drilling and reaming applications, enhancing accuracy. The integral #5 Morse taper allows for secure tool attachment, while ball bearing support ensures smooth operation and extends the tool’s lifespan. The ATP3500RAFYM ATP #5 Morse Taper Drill, 60RPM is ideal for those requiring a versatile and durable tool for heavy-duty applications.
| Free Speed | 60RPM |
|---|---|
| Drilling Capacity (Steel) | Heavy |
| Reaming Capacity (Steel) | Heavy |
| Reversible | Yes |
| Spindle Attachment | 5 Morse Taper |
| Net Weight | 69lbs / 31.40kg |
| Maximum Power | 5.9hp / 4.43kW |
| Side to Center Distance | 2.75'' / 69.9mm |
| Height Over Spindle | 23.25'' / 591mm |
| Air Inlet NPT | 1'' / 25.4mm |
| Hose ID | 1'' / 25.4mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 165 cfm / 4, 672 l/min |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP-3500-RAFYM |
A feed screw offers precise downforce for drilling and reaming applications, enhancing accuracy. The integral #5 Morse taper allows for secure tool attachment, while ball bearing support ensures smooth operation and extends the tool’s lifespan. The ATP3500RAFYM ATP #5 Morse Taper Drill, 60RPM is ideal for those requiring a versatile and durable tool for heavy-duty applications.
| Free Speed | 60RPM |
|---|---|
| Drilling Capacity (Steel) | Heavy |
| Reaming Capacity (Steel) | Heavy |
| Reversible | Yes |
| Spindle Attachment | 5 Morse Taper |
| Net Weight | 69lbs / 31.40kg |
| Maximum Power | 5.9hp / 4.43kW |
| Side to Center Distance | 2.75'' / 69.9mm |
| Height Over Spindle | 23.25'' / 591mm |
| Air Inlet NPT | 1'' / 25.4mm |
| Hose ID | 1'' / 25.4mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 165 cfm / 4, 672 l/min |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP-3500-RAFYM |
