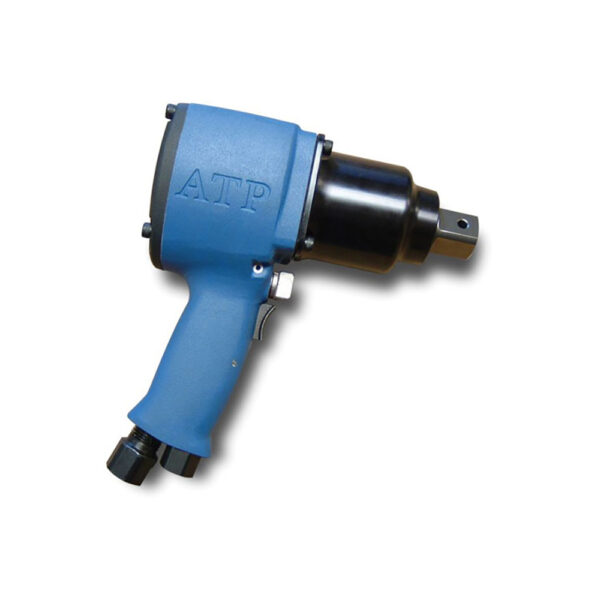

ATP7560PT-TH ATP Pistol Grip Impact Wrench, 3/4” Square Drive. Working Torque: 560 ft-lb / 760 Nm Max Torque: 1000 ft-lb / 1356 Nm Tool Duty Rating: Super Duty Handle Type: Pistol Throttle Type: Trigger Drive Size: 3/4”
The ATP7560PT-TH ATP Pistol Grip Impact Wrench, 3/4” Square Drive is engineered for both power and versatility, making it an excellent choice for a wide range of applications. Featuring a two-jaw clutch, it efficiently transfers high power, providing robust performance for demanding tasks. Its three-piece housing design allows for easy repair and maintenance, ensuring long-term reliability.
The steel clutch housing offers exceptional durability, making it suitable for both hard and soft draw applications. Additionally, the integral muffler effectively reduces noise, creating a more comfortable working environment. The ATP7560PT-TH ATP Pistol Grip Impact Wrench, 3/4” Square Drive is perfect for professionals who require a dependable and high-performing tool in various industrial settings.
| Working Torque | 560 ft-lbs / 760 Nm |
|---|---|
| Max Torque | 1000 ft-lbs / 1356 Nm |
| Tool Duty Rating | Super Duty |
| Handle Type | Pistol |
| Throttle Type | Trigger |
| Drive Size | 3/4'' |
| Impact Mechanism / Clutch | Two Jaw |
| Socket Retainer | Through Hole |
| Housing Construction | 3 Piece |
| Length | 7.60'' / 193mm |
| Weight | 11.6lbs / 5.20kg |
| Air Inlet NPT | 3/8'' |
| Min Hose ID | 1/2'' / 13mm |
| Performance Pressure | 90 PSIG / 6.2 Bar |
| Air Consumption | 35 cfm / 991 l/min |
| OEM | Chicago Pneumatic |
| Comparable OEM Model | CP6060-SASAB |
