B15M Chicago Pneumatic Needle Scaler. Part Number: 615 174 0240 Bore: 0.7” / 18mm Stroke: 1.2” / 30mm Needle Capacity: 12×1/8” (3) QtyxO Blows Per Minute: 3,800blows/min Power: 2.9joule Air Cons. at Load: 3.0cfm / 1.4l/s Weight: 3.5lb / 1.6kg

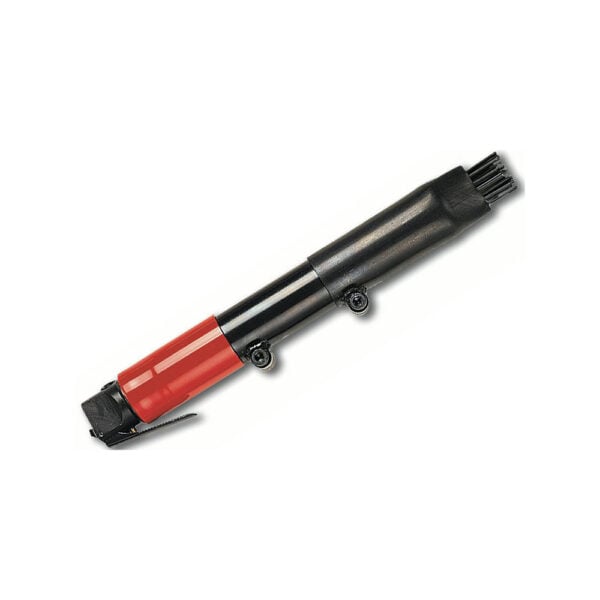

B15M Chicago Pneumatic Needle Scaler The B15M Chicago Pneumatic Needle Scaler is designed to be a straight chipping hammer that is lightweight and compact. This needle scaler has the possibility to convert into 29×5/64” (2mm) and is a great accessibility to hard to reach areas. The B15M Chicago Pneumatic Needle Scaler can be used as a one hand operation and includes an adjustable barrel that extends needle life.
| Model Number | B15M |
|---|---|
| Part Number | 615 174 0240 |
| Bore | 0.7'' / 18mm |
| Stroke | 1.2'' / 30mm |
| Needle Capacity | 12×1/8'' (3) QtyxO |
| Blows Per Minute | 3, 800blows/min |
| Power | 2.9joule |
| Air Cons. at Load | 3.0cfm / 1.4l/s |
| Weight | 3.5lb / 1.6kg |
| Length | 13.2'' / 335mm |
| Vibration Level | ISO 28927(M/S2) 10.6a / 6.3k |
| Sound Press/Power | 97 / 108 ISO 15744-dB(A) |
| Air Inlet | 1/4'' |
| Model Number | B15M |
|---|---|
| Part Number | 615 174 0240 |
| Bore | 0.7'' / 18mm |
| Stroke | 1.2'' / 30mm |
| Needle Capacity | 12×1/8'' (3) QtyxO |
| Blows Per Minute | 3, 800blows/min |
| Power | 2.9joule |
| Air Cons. at Load | 3.0cfm / 1.4l/s |
| Weight | 3.5lb / 1.6kg |
| Length | 13.2'' / 335mm |
| Vibration Level | ISO 28927(M/S2) 10.6a / 6.3k |
| Sound Press/Power | 97 / 108 ISO 15744-dB(A) |
| Air Inlet | 1/4'' |
