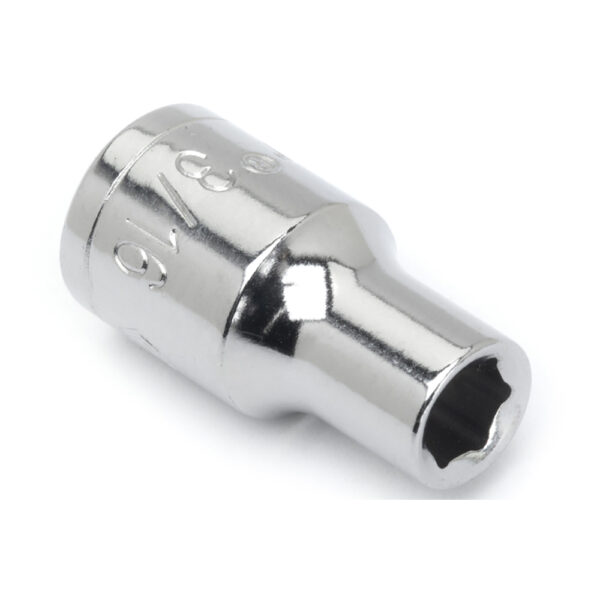

CDS1N Crescent 1/4'' Drive 6 Point Standard SAE Socket 3/16''

Crescent Tools

CDS1N Crescent 1/4” Drive 6 Point Standard SAE Socket 3/16”

Price: Price On Request

Part Number: CDS1N

Discontinued

CDS1N Crescent 1/4” Drive 6 Point Standard SAE Socket 3/16”. Dim. A: Drive End : 0.45 Dim. B: Wrench End : 0.31 Dim. D: Bolt Clearance : 0.12 Dim. E: Wrench Depth : 0.22 ASME Specification : B107.1-2002 Dim. F: Length to Shoulder : 0.41

Discontinued

CDS1N Crescent 1/4” Drive 6 Point Standard SAE Socket 3/16” Description

CDS1N Crescent 1/4” Drive 6 Point Standard SAE Socket 3/16” Description:

CDS1N Crescent 1/4” Drive 6 Point Standard SAE Socket 3/16” features:

Size markings stamped on socket for quick size identification
Meets or exceeds ASME specifications
Nickel chrome plated for durability
Manufactured from chrome alloy steel for better strength and longer tool life
Off-corner loading technology to virtually eliminate fastener rounding

Technical Specifications

Additional information

Part Number	CDS1N
Dim. A Drive End	0.45
Dim. B (Wrench End)	0.31
Dim. D (Bolt Clearance)	0.12
Dim. E Wrench Depth	0.22
ASME Specification	B107.1-2002
Dim. F (Length to Shoulder)	0.41
Overall Length	0.88
Size	3/16''
Packaging	Hang Tab
Weight (Catalog)	0.04
Socket Size (SAE)	3/16''
Drive Tang Size	1/4''
Length Format	Standard
Finish	Full Polish Chrome
Magnetic	No
SAE/Metric/Torx	SAE
UPC	37103316097
Material	Alloy Steel
