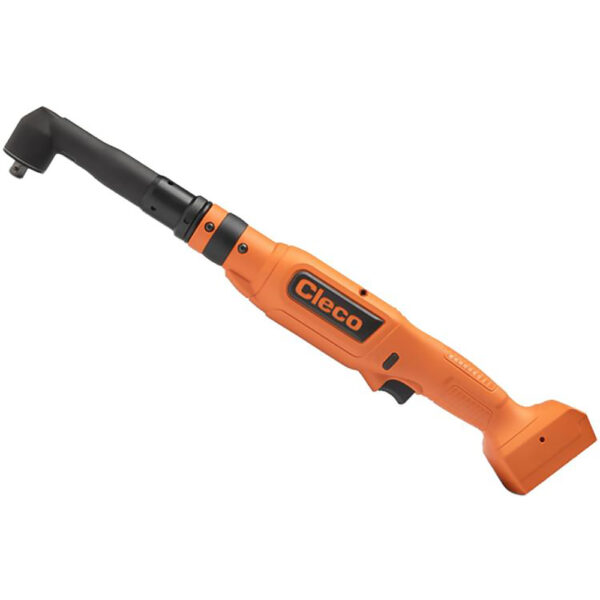

CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner, Speed r/min: 26 Speed r/max: 255 Nm Min Torque: 8.3 Nm Max Torque: 30 ft-lb Min Torque: 6.1 ft-lb Max Torque: 22.1
CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner CellClutch™ Cordless Assembly Tools are smart yet simple, bringing programmability to your line.
Cleco’s CellClutch™ is the newest innovation in cordless clutch tools. The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner is the perfect upgrade from pneumatic tools. Cleco CellClutch offers the simplicity of a mechanical clutch and the smarts of programmable run-down strategies and standard batch counting.
The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner has the ability to signal the operator if a batch is complete or alert the operator to any cross threads or rehits within a fastener batch. The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner has programmable rundown strategies that help eliminate expensive errors ensuring quality and accuracy from the start.
The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner features a mechanically adjustable clutch that provides a positive shut off that controls torque output.
CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner Features
Proven Cleco Clutch – Safety, accuracy and repeatability with a CMK >1.67 (at a tolerance of +-10% in accordance with ISO 5393)
Programmable Rundowns with Standard Batch Counting – Make your tasks easier with up to 7 programmable stages via USB interface. Standard features include batch count, angle or duration parameters and speed adjustment
White LED – See your workpiece more clearly with the built-in work light and secondary ‘ok/not ok’ operator feedback
Operator Status Light – See clearly and easily rundown and batch count status with color indicator light
Low Battery Warning- Prevent under-torqued fasteners with the low battery shut off
Speed r/min: 26
Speed r/max: 255
Nm Min Torque: 8.3
Nm Max Torque: 30
ft-lb Min Torque: 6.1
ft-lb Max Torque: 22.1
Weight: 3.9lbs / 1.8kg (w/o battery)
Length: 492 (19.37)
Side To Center: 15.0 (0.59)
Height: 76.0 (2.99)
Output: 3/8” Square Drive
Part Number: CLBA303
Cleco’s CellClutch™ is the newest innovation in cordless clutch tools. The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner is the perfect upgrade from pneumatic tools. Cleco CellClutch offers the simplicity of a mechanical clutch and the smarts of programmable run-down strategies and standard batch counting.
The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner has the ability to signal the operator if a batch is complete or alert the operator to any cross threads or rehits within a fastener batch. The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner has programmable rundown strategies that help eliminate expensive errors ensuring quality and accuracy from the start.
The CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner features a mechanically adjustable clutch that provides a positive shut off that controls torque output.
CLBA303 Cleco CellClutch Cordless Electric Right Angle Nutrunner Features
Proven Cleco Clutch – Safety, accuracy and repeatability with a CMK >1.67 (at a tolerance of +-10% in accordance with ISO 5393)
Programmable Rundowns with Standard Batch Counting – Make your tasks easier with up to 7 programmable stages via USB interface. Standard features include batch count, angle or duration parameters and speed adjustment
White LED – See your workpiece more clearly with the built-in work light and secondary ‘ok/not ok’ operator feedback
Operator Status Light – See clearly and easily rundown and batch count status with color indicator light
Low Battery Warning- Prevent under-torqued fasteners with the low battery shut off
