Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece

Price: Price On Request

Part Number: 10000010

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece. Input Style: Fixed Shank Shank Diameter: 0.189” (ø 4.8 mm) Cutter Thread: M6 x 1 Stroke: 0.14” (3.5 mm) Vacuum: No Mounting Base Style: Tapped M19F for Nose

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece Description

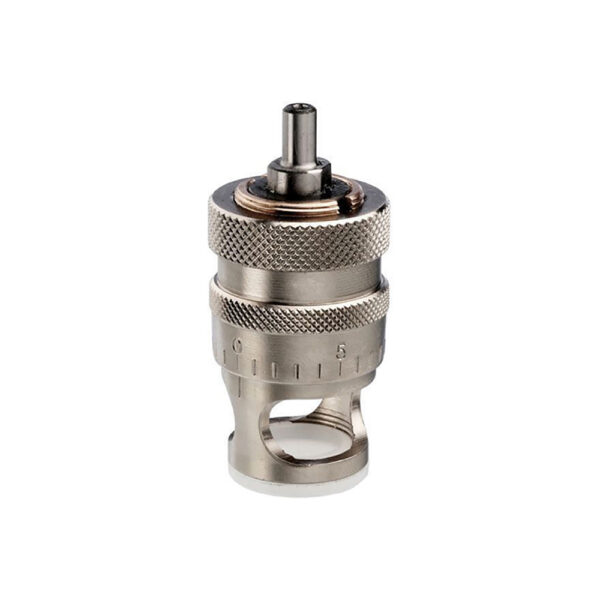

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece Product Image May Not Reflect Actual Model. The Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece is a cemented, hardened and ground chrome-nickel steel spindle mounted on a self lubrificating bronze body and a thrust bearing. Centring-cone of the cutter (120°) for perfect concentricity. Microstop depth adjustment (1 scale division = .001”). The Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece’s depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage.

Technical Specifications

Additional information

Part Number

10000010

Title

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece

Tool Brand

Cleco Tool

Input Style

Fixed Shank

Shank Diameter

0.189'' (ø 4.8 mm)

Cutter Thread

M6 x 1

Stroke

0.14'' (3.5 mm)

Vacuum

No

Mounting Base Style

Tapped M19F for Nose

Window Style

Small

Nose Insert Style

Nylon

Diameter Max

0.98'' (ø 25 mm)

Max Overall Length

2.17'' (55 mm)

Min. Overall Length

2.01'' (51 mm)

Weight

0.165lbs

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece Product Image May Not Reflect Actual Model. The Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece is a cemented, hardened and ground chrome-nickel steel spindle mounted on a self lubrificating bronze body and a thrust bearing. Centring-cone of the cutter (120°) for perfect concentricity. Microstop depth adjustment (1 scale division = .001”). The Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece’s depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage.

Additional information

Part Number

10000010

Title

Cleco 10000010 RB 156 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Piece

Tool Brand

Cleco Tool

Input Style

Fixed Shank

Shank Diameter

0.189'' (ø 4.8 mm)

Cutter Thread

M6 x 1

Stroke

0.14'' (3.5 mm)

Vacuum

No

Mounting Base Style

Tapped M19F for Nose

Window Style

Small

Nose Insert Style

Nylon

Diameter Max

0.98'' (ø 25 mm)

Max Overall Length

2.17'' (55 mm)

Min. Overall Length

2.01'' (51 mm)

Weight

0.165lbs
