Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose

Price: Price On Request

Part Number: 10010010W

Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose. Part Number: 10010010W Input Style: Fixed Shank Shank Diameter: 0.24” (Ø 6 mm) Cutter Thread: M6 x 1 Stroke: 0.3” Vacuum: Yes

Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose Description

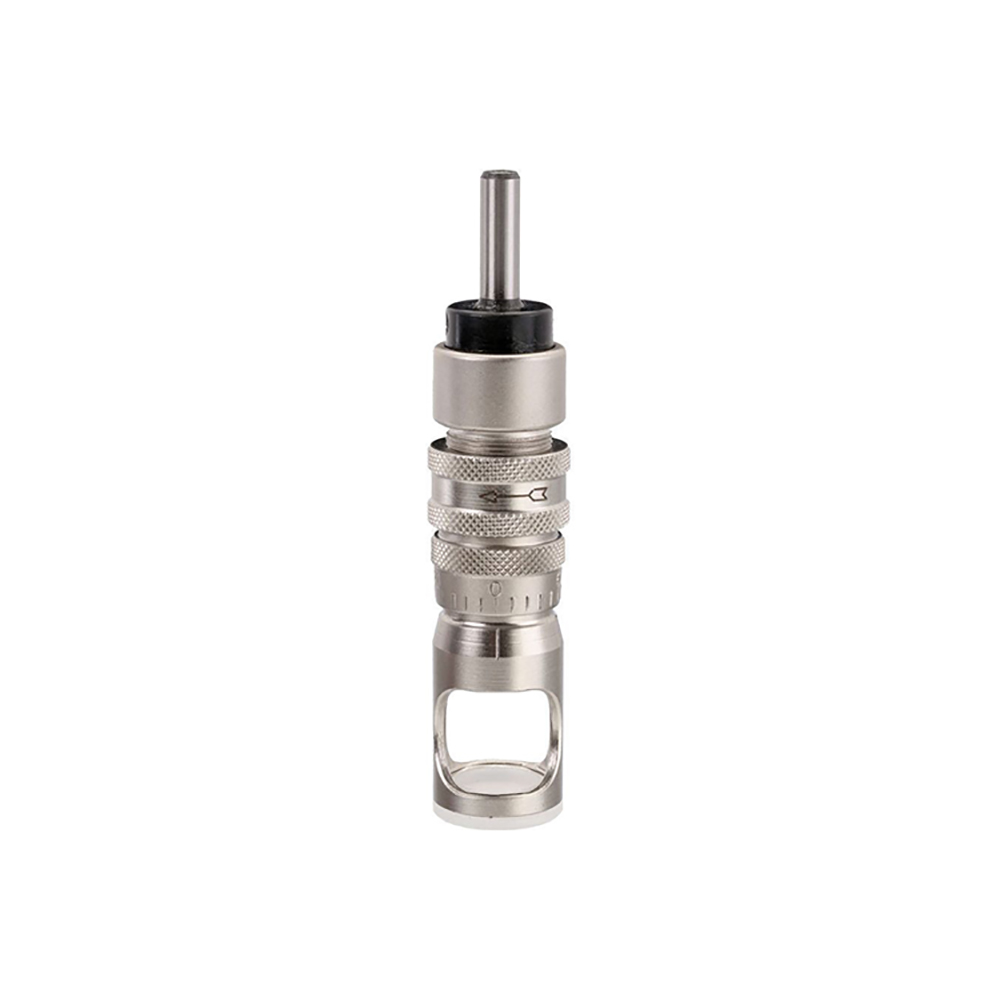

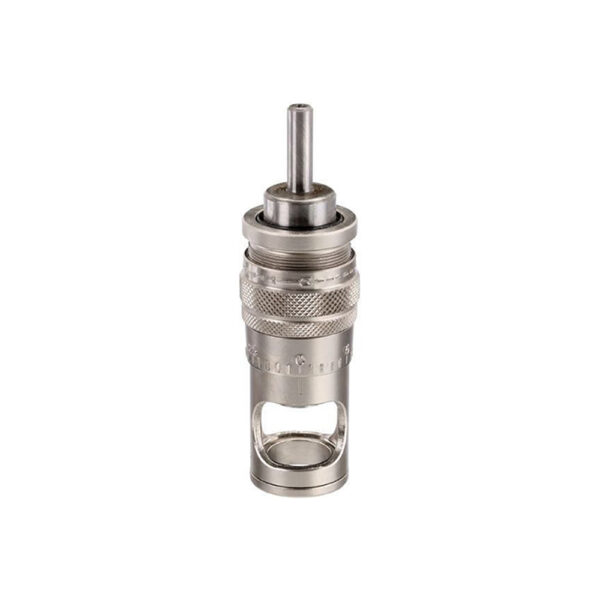

Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose Product Image May Not Reflect Actual Model. The Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose features a cemented, hardened and ground chrome-nickel steel spindle mounted on a self lubrificating bronze body and a thrust bearing. Centring-cone of the cutter (120°) for perfect concentricity. Microstop depth adjustment (1 scale division = .001”). Microstop depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage. Different mounting bases available. For special composites mounting base with vacuum.

Technical Specifications

Additional information

Part Number

10010010W

Input Style

Fixed Shank

Shank Diameter

0.24'' (Ø 6 mm)

Cutter Thread

M6 x 1

Stroke

0.3''

Vacuum

Yes

Mounting Base Style

M19F

Window Style

Large

Nose Insert Style

Hard Chrome Steel

Diameter Max

1.10'' (Ø 28 mm)

Max Overall Length

3.85'' (98 mm)

Min. Overall Length

3.58'' (91 mm)

Weight

0.386lbs

Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose

Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose Product Image May Not Reflect Actual Model. The Cleco 10010010W RB 256 Microstop Cage, Tapped Mounting Base Large Window w/ Hard Chrome Steel Nose features a cemented, hardened and ground chrome-nickel steel spindle mounted on a self lubrificating bronze body and a thrust bearing. Centring-cone of the cutter (120°) for perfect concentricity. Microstop depth adjustment (1 scale division = .001”). Microstop depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage. Different mounting bases available. For special composites mounting base with vacuum.

Additional information

Part Number

10010010W

Input Style

Fixed Shank

Shank Diameter

0.24'' (Ø 6 mm)

Cutter Thread

M6 x 1

Stroke

0.3''

Vacuum

Yes

Mounting Base Style

M19F

Window Style

Large

Nose Insert Style

Hard Chrome Steel

Diameter Max

1.10'' (Ø 28 mm)

Max Overall Length

3.85'' (98 mm)

Min. Overall Length

3.58'' (91 mm)

Weight

0.386lbs
