Cleco 10010115 RBI 256 Microstop Cage, Tapped Mounting Base w/ Nylon Nose. Part Number: 10010115 Input Style: Fixed Shank Shank Diameter: 0.24” (Ø 6 mm) Cutter Thread: 1/4” – 28 F Stroke: 0.3” (7.5 mm) Vacuum: Yes Mounting Base Style: M19F

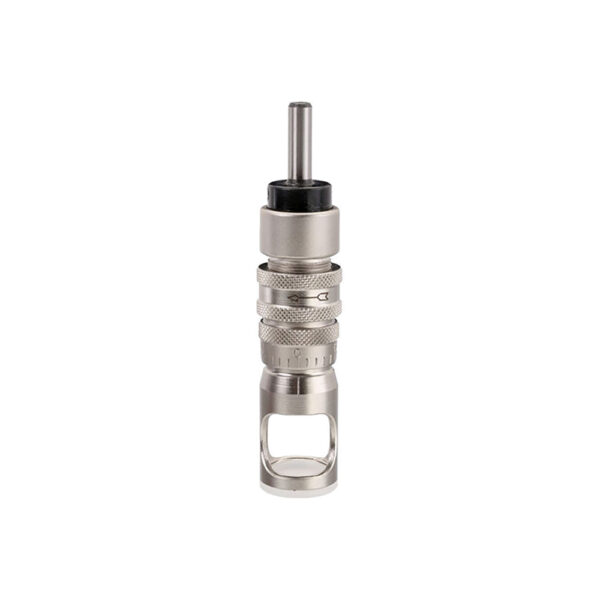

Cleco 10010115 RBI 256 Microstop Cage, Tapped Mounting Base w/ Nylon Nose Product Image May Not Reflect Actual Model. The Cleco 10010115 RBI 256 Microstop Cage, Tapped Mounting Base w/ Nylon Nose features a cemented, hardened and ground chrome-nickel steel spindle mounted on a self lubrificating bronze body and a thrust bearing. Centring-cone of the cutter (120°) for perfect concentricity. Microstop depth adjustment (1 scale division = .001”). Microstop depth setting is held securely in place by locknut with seal. This patented feature allows an easy loosening of the locknut without damage to the drill cage. Different mounting bases available. For special composites mounting base with vacuum.
Part Number | 10010115 |
---|---|
Input Style | Fixed Shank |
Shank Diameter | 0.24'' (Ø 6 mm) |
Cutter Thread | 1/4'' – 28 F |
Stroke | 0.3'' (7.5 mm) |
Vacuum | Yes |
Mounting Base Style | M19F |
Window Style | Small |
Nose Insert Style | Nylon |
Diameter Max | 1.10'' (Ø 28 mm) |
Max Overall Length | 3.85'' (98 mm) |
Min. Overall Length | 3.58'' (91 mm) |
Weight | 0.386lbs |
Part Number | 10010115 |
---|---|
Input Style | Fixed Shank |
Shank Diameter | 0.24'' (Ø 6 mm) |
Cutter Thread | 1/4'' – 28 F |
Stroke | 0.3'' (7.5 mm) |
Vacuum | Yes |
Mounting Base Style | M19F |
Window Style | Small |
Nose Insert Style | Nylon |
Diameter Max | 1.10'' (Ø 28 mm) |
Max Overall Length | 3.85'' (98 mm) |
Min. Overall Length | 3.58'' (91 mm) |
Weight | 0.386lbs |
