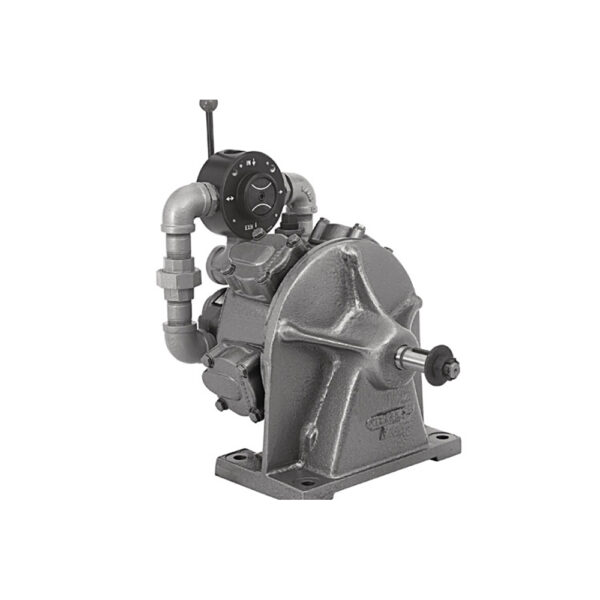

Cleco MER385M ME Series Radial Piston Air Motor

Price: Price On Request

Part Number: MER385M

Cleco MER385M ME Series Radial Piston Air Motor. Spindle Type: 1 1/4” Threaded Spindle RPM at MAX HP (1/min): 60 Free Speed (1/min): 120 Torque Stall (ft/lbs): 985 Gear Ratio: 20.4-1 Length: 18.12” Air Consumption: 167 Control: Reversible Valving

Cleco MER385M ME Series Radial Piston Air Motor Description

Cleco MER385M ME Series Radial Piston Air Motors Cleco MER385M ME Series Radial Piston Air Motors are designed with a maximum power of 5.5 horsepower and 4.10 kw with a torque range of 34 – 700 ft. lbs or 46 – 949 Nm. Cleco MER385M ME Series Radial Piston Air Motors also feature a reversible, single direction, or no valving control and a 1 1/4” Threaded Spindle.

Rely on Cleco Tools for the parts you need, as soon as you need them. Cleco Tools replacement parts keep you up and running when you need it most. Cleco Tools meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications.

Cleco Tools provides solutions that make your line more accurate, connected, productive and safe. From a single tool, to an entire integrated solution, Cleco Tools is here to help you build your products and your business. Cleco Tools offers solutions are are focused on increasing productivity while enhancing the users’ experience with simplicity of set-up, ease of use, and focus on comfort and safety. Cleco Tools offers specific solutions to the following industries: Automotive, Aerospace Appliances, Electronics and Industrial Assembly, Agriculture and Off-Road Machinery.

Technical Specifications

Additional information

Spindle Type

1 1/4'' Threaded Spindle

RPM at MAX HP (1/min)

60

Free Speed

120

Torque Stall (ft/lbs)

985

Gear Ratio

20.4-1

Length

18.12''

Air Consumption (SCFM)

167

Control

Reversible Valving

Horsepower

N/A

Mount

Foot Mounting

Cleco MER385M ME Series Radial Piston Air Motor

Cleco MER385M ME Series Radial Piston Air Motors Cleco MER385M ME Series Radial Piston Air Motors are designed with a maximum power of 5.5 horsepower and 4.10 kw with a torque range of 34 – 700 ft. lbs or 46 – 949 Nm. Cleco MER385M ME Series Radial Piston Air Motors also feature a reversible, single direction, or no valving control and a 1 1/4” Threaded Spindle.

Rely on Cleco Tools for the parts you need, as soon as you need them. Cleco Tools replacement parts keep you up and running when you need it most. Cleco Tools meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications.

Cleco Tools provides solutions that make your line more accurate, connected, productive and safe. From a single tool, to an entire integrated solution, Cleco Tools is here to help you build your products and your business. Cleco Tools offers solutions are are focused on increasing productivity while enhancing the users’ experience with simplicity of set-up, ease of use, and focus on comfort and safety. Cleco Tools offers specific solutions to the following industries: Automotive, Aerospace Appliances, Electronics and Industrial Assembly, Agriculture and Off-Road Machinery.

Additional information

Spindle Type

1 1/4'' Threaded Spindle

RPM at MAX HP (1/min)

60

Free Speed

120

Torque Stall (ft/lbs)

985

Gear Ratio

20.4-1

Length

18.12''

Air Consumption (SCFM)

167

Control

Reversible Valving

Horsepower

N/A

Mount

Foot Mounting
