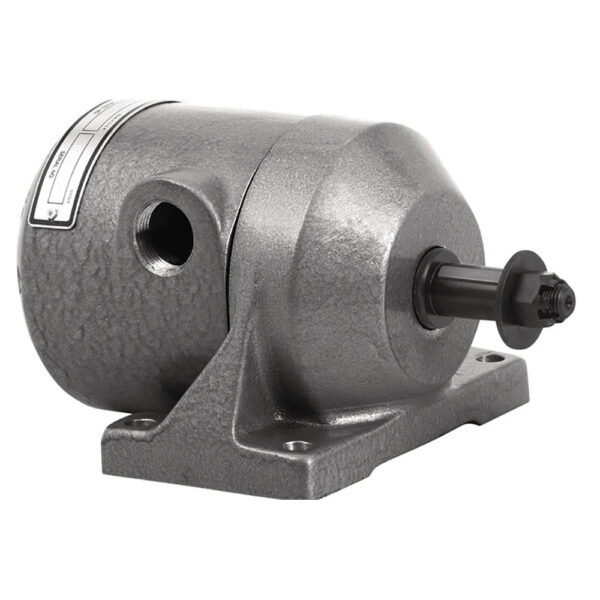

Cleco MR30R112M MR30 Series Rotary Vane Air Motor

Price: Price On Request

Part Number: MR30R112M

Cleco MR30R112M MR30 Series Rotary Vane Air Motor. Spindle Type: 1 1/8” Keyed Spindle RPM at MAX HP (1/min): 177 Free Speed (1/min): 325 Torque Stall (ft/lbs): 209 Gear Ratio: 23.8-1 Length: 14.19 Air Consumption: 124 Control: Reversible Exhaust: Side

Cleco MR30R112M MR30 Series Rotary Vane Air Motor Description

Cleco MR30R112M MR30 Series Rotary Vane Air Motor Cleco MR30R112M MR30 Series Rotary Vane Air Motors are designed with a maximum power of 3.0 horsepower and 2.24 kw with a torque range of 7.2 – 209 ft. lbs or 10 – 283 Nm. Cleco MR30R112M MR30 Series Rotary Vane Air Motors also features a reversible control and a 3/4” or 1 1/8” Keyed Spindle.

Rely on Cleco Tools for the parts you need, as soon as you need them. Cleco Tools replacement parts keep you up and running when you need it most. Cleco Tools meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications.

Cleco Tools provides solutions that make your line more accurate, connected, productive and safe. From a single tool, to an entire integrated solution, Cleco Tools is here to help you build your products and your business. Cleco Tools offers solutions are are focused on increasing productivity while enhancing the users’ experience with simplicity of set-up, ease of use, and focus on comfort and safety. Cleco Tools offers specific solutions to the following industries: Automotive, Aerospace Appliances, Electronics and Industrial Assembly, Agriculture and Off-Road Machinery.

Technical Specifications

Additional information

Spindle Type

1 1/8 in Keyed Spindle

RPM at MAX HP (1/min)

177

Free Speed

325

Torque Stall (ft/lbs)

209

Gear Ratio

23.8-1

Length

14.19

Air Consumption (SCFM)

124

Control

Reversible

Exhaust

Side

Horsepower

N/A

Mount

Flange Mounting

Cleco MR30R112M MR30 Series Rotary Vane Air Motor

Cleco MR30R112M MR30 Series Rotary Vane Air Motor Cleco MR30R112M MR30 Series Rotary Vane Air Motors are designed with a maximum power of 3.0 horsepower and 2.24 kw with a torque range of 7.2 – 209 ft. lbs or 10 – 283 Nm. Cleco MR30R112M MR30 Series Rotary Vane Air Motors also features a reversible control and a 3/4” or 1 1/8” Keyed Spindle.

Rely on Cleco Tools for the parts you need, as soon as you need them. Cleco Tools replacement parts keep you up and running when you need it most. Cleco Tools meet the demanding requirements of industries including shipbuilding, pipe fabricating, transportation equipment manufacturing, and welding applications.

Cleco Tools provides solutions that make your line more accurate, connected, productive and safe. From a single tool, to an entire integrated solution, Cleco Tools is here to help you build your products and your business. Cleco Tools offers solutions are are focused on increasing productivity while enhancing the users’ experience with simplicity of set-up, ease of use, and focus on comfort and safety. Cleco Tools offers specific solutions to the following industries: Automotive, Aerospace Appliances, Electronics and Industrial Assembly, Agriculture and Off-Road Machinery.

Additional information

Spindle Type

1 1/8 in Keyed Spindle

RPM at MAX HP (1/min)

177

Free Speed

325

Torque Stall (ft/lbs)

209

Gear Ratio

23.8-1

Length

14.19

Air Consumption (SCFM)

124

Control

Reversible

Exhaust

Side

Horsepower

N/A

Mount

Flange Mounting
