CM8S Bosch 8-1/2” Single Bevel Slide Miter Saw. Amperage: 12.0 Bevel Angle Range: -2° to 47° Bevel Stops: 0°, 22.5°, 33.9°, 45° Blade Diameter: 8.5 Blade Size: 8-1/2” Case Type: No Case Included Dust Collection: Yes

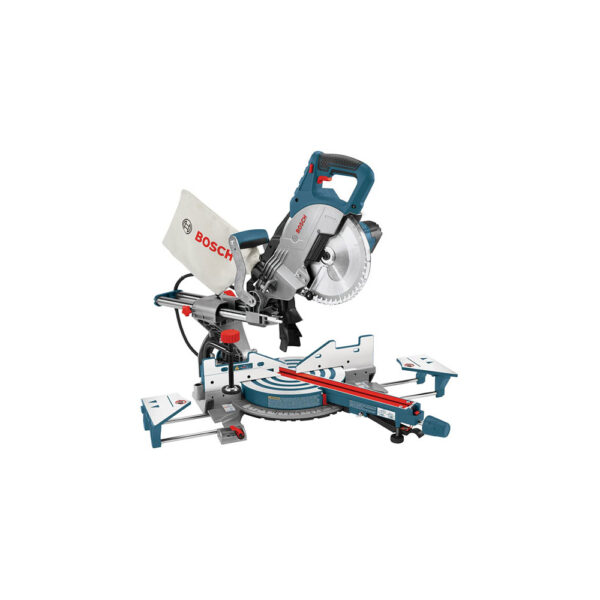

CM8S Bosch 8-1/2” Single Bevel Slide Miter Saw CM8S Bosch 8-1/2” Single Bevel Slide Miter Saw features a Bosch exclusive design delivering a well-balanced saw with a top carry handle at the center of gravity and weighs only 37 pounds. These features easily provide one-handed portability on and off the job. CM8S Bosch 8-1/2” Single Bevel Slide Miter Saw features accessible controls that make it easy to change bevel settings without reaching behind the saw. The integrated expanding work piece supports, large easy to read miter and bevel scales, and detent system provides quick and accurate cuts. CM8S Bosch 8-1/2” Single Bevel Slide Miter Saw also has the same crosscut capacity (12-1/4 In.) as a 10 In. miter saw, at 30% lighter weight.
| Amperage | 12 |
|---|---|
| Bevel Angle Range | -2° to 47° |
| Bevel Stops | 0°, 22.5°, 33.9°, 45° |
| Blade Diameter | 8.5 |
| Blade Size | 8-1/2'' |
| Case Type | No Case Included |
| Category Type | Compound Miter Saws |
| Crown Molding | Angled Against Fence 3-1/2'' |
| Dust Collection | Yes |
| Electric Motor Brake | No |
| Height | 18.0'' |
| Height of Table | from Base Feet to Table Surface – In. 2.44 |
| Length | 32.0'' |
| Max. Base Molding | Against Fence 2-3/4 In. |
| Max. Crown Molding | (45° Spring) Angled Against Fence 3-3/4 In. |
| Max. Cut Capacity | 45° Miter 45° Right Bevel Not possible |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | (Left/Right) 60°, (Right), 0°, 15°, 22.5°, 31.6°, 45° |
| Miter Positive Stops | ° 31.6°, 0°, 15°, 22.5, 45° (Left/Right), 60° (Right) |
| No Load RPM | 5, 600 |
| Sep. On/Off Speed Control | No |
| Voltage | 120V |
| Weight | 37.0lb |
| Width | 18.0" |
| Works with | and most other 22 mm and 35 mm anti-static hosesOther Vacuum Hoses, and most other 22 mm and 35 mm hosesVAC002 and VAC024 Adapter for 1-1/4 in and 1-1/2 in. Vacuum HosesVAC020 Adapter for 2-1/2 in. Vacuum Hoses, GTA3800MS1233 Crown Molding Stops (Pair)MS1234 Length StopAnti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), Miter Saw Stands T1B, T4B, VAC005 and VAC006 hoses, VAC008, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses) |
| Includes | (1) 8-1/2 In. 40-Tooth Carbide-Tipped Blade, (1) Blade Wrench, (1) CM8S 8-1/2 In. Single-Bevel Slide Miter Saw, (1) Dust Bag Assembly, (1) Toolless Work Piece Clamp |
| Amperage | 12 |
|---|---|
| Bevel Angle Range | -2° to 47° |
| Bevel Stops | 0°, 22.5°, 33.9°, 45° |
| Blade Diameter | 8.5 |
| Blade Size | 8-1/2'' |
| Case Type | No Case Included |
| Category Type | Compound Miter Saws |
| Crown Molding | Angled Against Fence 3-1/2'' |
| Dust Collection | Yes |
| Electric Motor Brake | No |
| Height | 18.0'' |
| Height of Table | from Base Feet to Table Surface – In. 2.44 |
| Length | 32.0'' |
| Max. Base Molding | Against Fence 2-3/4 In. |
| Max. Crown Molding | (45° Spring) Angled Against Fence 3-3/4 In. |
| Max. Cut Capacity | 45° Miter 45° Right Bevel Not possible |
| Miter Angle Range | 52° Left, 60° Right |
| Miter Detents | (Left/Right) 60°, (Right), 0°, 15°, 22.5°, 31.6°, 45° |
| Miter Positive Stops | ° 31.6°, 0°, 15°, 22.5, 45° (Left/Right), 60° (Right) |
| No Load RPM | 5, 600 |
| Sep. On/Off Speed Control | No |
| Voltage | 120V |
| Weight | 37.0lb |
| Width | 18.0" |
| Works with | and most other 22 mm and 35 mm anti-static hosesOther Vacuum Hoses, and most other 22 mm and 35 mm hosesVAC002 and VAC024 Adapter for 1-1/4 in and 1-1/2 in. Vacuum HosesVAC020 Adapter for 2-1/2 in. Vacuum Hoses, GTA3800MS1233 Crown Molding Stops (Pair)MS1234 Length StopAnti-Static Vacuum Hoses VH1622A and VH1635A (by means of anti-static adapter included with those hoses), Miter Saw Stands T1B, T4B, VAC005 and VAC006 hoses, VAC008, VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses) |
| Includes | (1) 8-1/2 In. 40-Tooth Carbide-Tipped Blade, (1) Blade Wrench, (1) CM8S 8-1/2 In. Single-Bevel Slide Miter Saw, (1) Dust Bag Assembly, (1) Toolless Work Piece Clamp |
Discontinued
