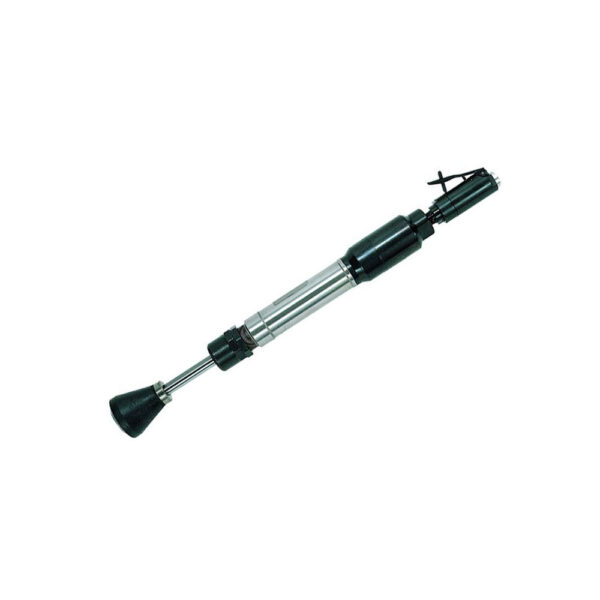

CP0200B22-2F Chicago Pneumatic Bench Rammer

Price: $860.11

Part Number: CP0200B22-2F

CP0200B22-2F Chicago Pneumatic Bench Rammer. Part Number: 615 161 8040 Blows Per Minute: 1,020BPM Power: 9.2joule Bore: 0.9” / 22mm Stroke: 2.5” / 64mm Butt Diameter: 2.01” / 51mm Length: 13.8” / 350mm Weight: 6.6lb / 3.0kg

CP0200B22-2F Chicago Pneumatic Bench Rammer Description

CP0200B22-2F Chicago Pneumatic Bench Rammer The CP0200B22-2F Chicago Pneumatic Bench Rammer is designed to be compact and lightweight with a high efficiency due to the high BPM. This sand rammer features extra durability due to heat treated parts available in 0.9” (22mm) / 1” (25.4mm) bores and includes a safety lever. The CP0200B22-2F Chicago Pneumatic Bench Rammer is ideal for foundry applications with comfortable operation/high production. This sand rammer should be used for casting sand in cylinders and large molds.

Technical Specifications

Additional information

Model Number

CP0200B22-2F

Part Number

615 161 8040

Blows Per Minute

020BPM, 1

Power

9.2joule

Bore

0.9'' / 22mm

Stroke

2.5'' / 64mm

Butt Diameter

2.01'' / 51mm

Length

13.8'' / 350mm

Weight

6.6lb / 3.0kg

Air Cons. at Load

17.7cfm / 8.4l/s

Air Inlet

3/8''

Inner Hose DIA.

3/8'' / 10mm

Sound Press/Power

95 / 106 ISO 15744-dB(A)

Vibration Level

ISO 28927(M/S2) 19.4a / 6.1k

CP0200B22-2F Chicago Pneumatic Bench Rammer

CP0200B22-2F Chicago Pneumatic Bench Rammer The CP0200B22-2F Chicago Pneumatic Bench Rammer is designed to be compact and lightweight with a high efficiency due to the high BPM. This sand rammer features extra durability due to heat treated parts available in 0.9” (22mm) / 1” (25.4mm) bores and includes a safety lever. The CP0200B22-2F Chicago Pneumatic Bench Rammer is ideal for foundry applications with comfortable operation/high production. This sand rammer should be used for casting sand in cylinders and large molds.

Additional information

Model Number

CP0200B22-2F

Part Number

615 161 8040

Blows Per Minute

020BPM, 1

Power

9.2joule

Bore

0.9'' / 22mm

Stroke

2.5'' / 64mm

Butt Diameter

2.01'' / 51mm

Length

13.8'' / 350mm

Weight

6.6lb / 3.0kg

Air Cons. at Load

17.7cfm / 8.4l/s

Air Inlet

3/8''

Inner Hose DIA.

3/8'' / 10mm

Sound Press/Power

95 / 106 ISO 15744-dB(A)

Vibration Level

ISO 28927(M/S2) 19.4a / 6.1k
