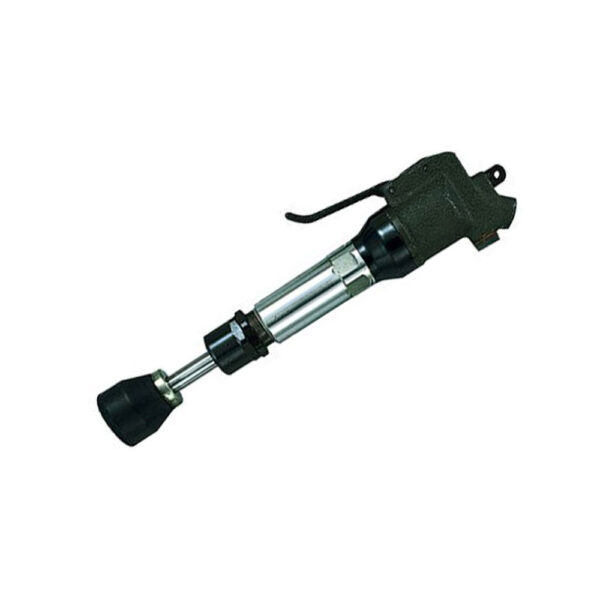

CP0200B22 Chicago Pneumatic Bench Rammer. Part Number: 615 161 8030 Blows Per Minute: 1,020BPM Power: 9.2joule Bore: 0.9” / 22mm Stroke: 2.5” / 64mm Butt Diameter: 2.01” / 51mm Length: 13.8” / 350mm Weight: 6.6lb / 3.0kg
CP0200B22 Chicago Pneumatic Bench Rammer The CP0200B22 Chicago Pneumatic Bench Rammer is designed to be compact and lightweight with a high efficiency due to the high BPM. This sand rammer features extra durability due to heat treated parts available in 0.7” (18mm) / 1” (25.4mm) bores. The CP0200B22 Chicago Pneumatic Bench Rammer is ideal for foundry applications with comfortable operation/high production. This sand rammer should be used for casting sand in cylinders and large molds.
| Model Number | CP0200B22 |
|---|---|
| Part Number | 615 161 8030 |
| Blows Per Minute | 020BPM, 1 |
| Power | 9.2joule |
| Bore | 0.9'' / 22mm |
| Stroke | 2.5'' / 64mm |
| Butt Diameter | 2.01'' / 51mm |
| Length | 13.8'' / 350mm |
| Weight | 6.6lb / 3.0kg |
| Air Cons. at Load | 17.7cfm / 8.4l/s |
| Air Inlet | 3/8'' |
| Inner Hose DIA. | 3/8'' / 10mm |
| Sound Press/Power | 95 / 106 ISO 15744-dB(A) |
| Vibration Level | ISO 28927(M/S2) 19.4a / 6.1k |
| Model Number | CP0200B22 |
|---|---|
| Part Number | 615 161 8030 |
| Blows Per Minute | 020BPM, 1 |
| Power | 9.2joule |
| Bore | 0.9'' / 22mm |
| Stroke | 2.5'' / 64mm |
| Butt Diameter | 2.01'' / 51mm |
| Length | 13.8'' / 350mm |
| Weight | 6.6lb / 3.0kg |
| Air Cons. at Load | 17.7cfm / 8.4l/s |
| Air Inlet | 3/8'' |
| Inner Hose DIA. | 3/8'' / 10mm |
| Sound Press/Power | 95 / 106 ISO 15744-dB(A) |
| Vibration Level | ISO 28927(M/S2) 19.4a / 6.1k |
