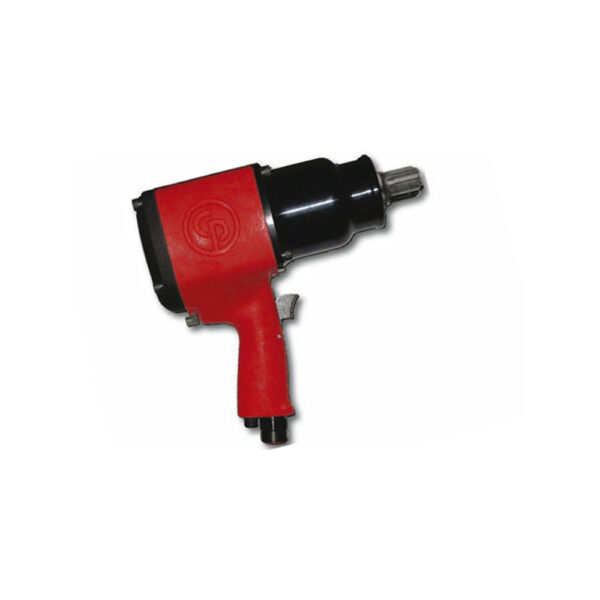

CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench. Drive: #5” Blows Per Minute: 1,020 Free Speed: 3,500RPM Working Torque (FW): 900-1,800ft.lb / 1,220-2,400Nm Max. Torque (REV): 2,800ft.lb / 3,790Nm Net Weight: 23.1lb / 10.5kg Length: 10.7” / 272mm
CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench is the best super industrial with Spline #5 and features a reliable 2-jaw clutch for progressive torque with the highest blows per minutes. The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench features a full teasing trigger for better control and the aluminum body and robust steel clutch housing makes for maximum durability during use.
The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench features a Spline #5 which helps with the avoidance of loss of torque, reduces vibrations and increases durability of anvil. The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench features maximized operator comfort and control because of this perfect design and ergonomic features even at the highest torque.
| Model Number | CP0611P RLS |
|---|---|
| Part Number | 615 159 0060 |
| Drive | #5'' |
| Blows Per Minute | 020, 1 |
| Free Speed | 3, 500RPM |
| Working Torque (FW) | 220-2, 400Nm, 800ft.lb / 1, 900-1 |
| Max. Torque (REV) | 2, 790Nm, 800ft.lb / 3 |
| Net Weight | 23.1lb / 10.5kg |
| Length | 10.7'' / 272mm |
| Air Cons. at Load | 48cfm / 22.6l/s |
| Vibration Level | ISO 28927 (M/S2) 16.8a / 4.7k |
| Sound Pressure/Power | 102 / 113 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench features a Spline #5 which helps with the avoidance of loss of torque, reduces vibrations and increases durability of anvil. The CP0611P RLS Chicago Pneumatic #5 Spline Impact Wrench features maximized operator comfort and control because of this perfect design and ergonomic features even at the highest torque.
| Model Number | CP0611P RLS |
|---|---|
| Part Number | 615 159 0060 |
| Drive | #5'' |
| Blows Per Minute | 020, 1 |
| Free Speed | 3, 500RPM |
| Working Torque (FW) | 220-2, 400Nm, 800ft.lb / 1, 900-1 |
| Max. Torque (REV) | 2, 790Nm, 800ft.lb / 3 |
| Net Weight | 23.1lb / 10.5kg |
| Length | 10.7'' / 272mm |
| Air Cons. at Load | 48cfm / 22.6l/s |
| Vibration Level | ISO 28927 (M/S2) 16.8a / 4.7k |
| Sound Pressure/Power | 102 / 113 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
