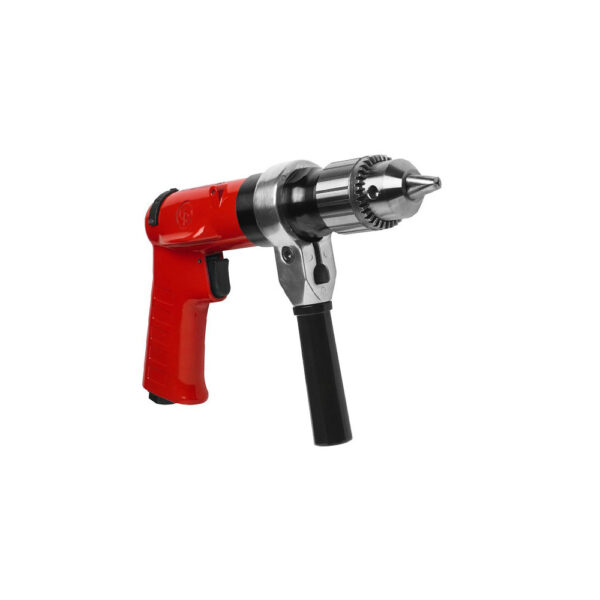

CP1114R05 Chicago Pneumatic Reversible Key Chuck Drill. Part Number: 615 158 0310 Power: 0.5hp / 410w Free Speed: 500RPM Chuck Capacity: 1/2” / 13mm Spindle: 3/8-24” Stall Torque: 18.6ft.lb / 25.2Nm Net Weight: 2.8lb / 1.3kg Length: 8.5” / 215mm
CP1114R05 Chicago Pneumatic Reversible Key Chuck Drill The CP1114R Series is designed for high torque and durability to improve productivity thanks to high power. These drills give operator comfort thanks to exclusive ergonomic features and should be used for industrial maintenance and production designed for intensive duty.
The CP1114R05 Chicago Pneumatic Reversible Key Chuck Drill features a 1/2” (913mm) industrial pistol with Jacobs industrial keyed chuck and is known to have the best power to weight ratio with 0.5hp (410w) motor. This drill includes a durable gearbox that reduces maintenance cost and downtime.
| Model Number | CP1114R05 |
|---|---|
| Part Number | 615 158 0310 |
| Power | 0.5hp / 410w |
| Free Speed | 500RPM |
| Chuck Capacity | 1/2'' / 13mm |
| Spindle | 3/8-24'' |
| Stall Torque | 18.6ft.lb / 25.2Nm |
| Net Weight | 2.8lb / 1.3kg |
| Length | 8.5'' / 215mm |
| Air Cons. at Load | 25.5cfm / 12l/s |
| Vibration Level | ISO 28927 (M/S2) 2.6a / 1.1k |
| Sound Pressure/Power | 82 / 93 ISO 15744-dB(A) |
| Air Intel | 1/4'' |
The CP1114R05 Chicago Pneumatic Reversible Key Chuck Drill features a 1/2” (913mm) industrial pistol with Jacobs industrial keyed chuck and is known to have the best power to weight ratio with 0.5hp (410w) motor. This drill includes a durable gearbox that reduces maintenance cost and downtime.
| Model Number | CP1114R05 |
|---|---|
| Part Number | 615 158 0310 |
| Power | 0.5hp / 410w |
| Free Speed | 500RPM |
| Chuck Capacity | 1/2'' / 13mm |
| Spindle | 3/8-24'' |
| Stall Torque | 18.6ft.lb / 25.2Nm |
| Net Weight | 2.8lb / 1.3kg |
| Length | 8.5'' / 215mm |
| Air Cons. at Load | 25.5cfm / 12l/s |
| Vibration Level | ISO 28927 (M/S2) 2.6a / 1.1k |
| Sound Pressure/Power | 82 / 93 ISO 15744-dB(A) |
| Air Intel | 1/4'' |
