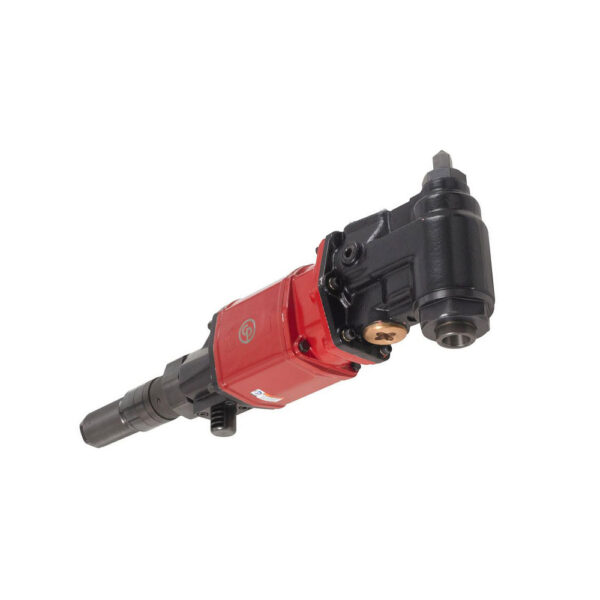

CP1720R22 Chicago Pneumatic Corner Drill. Part Number: 615 158 0250 Power: 1.2hp / 890w Free Speed: 430RPM Chuck Capacity: 7/8” / 22mm Spindle: M.T.2 Stall Torque: 59.3ft.lb / 80.4Nm Net Weight: 15.4lb / 7kg Length: 18.6” / 472mm
CP1720R22 Chicago Pneumatic Corner Drill The CP1720R22 Chicago Pneumatic Corner Drill is designed for the highest power, durability and precision featuring a 1-1/4” (32mm) reversible corner drill with 430RPM of free speed. This drill includes a powerful 1.2hp (890w) motor and a Morse Taper No. 2 drill socket.
The CP1720R22 Chicago Pneumatic Corner Drill is designed for super intensive duty and precision in industrial maintenance and production applications. This drill is ideal for drilling, reaming and tapping of mild steel or cast iron.
| Model Number | CP1720R22 |
|---|---|
| Part Number | 615 158 0250 |
| Power | 1.2hp / 890w |
| Free Speed | 430RPM |
| Chuck Capacity | 7/8'' / 22mm |
| Spindle | M.T.2 |
| Stall Torque | 59.3ft.lb / 80.4Nm |
| Net Weight | 15.4lb / 7kg |
| Length | 18.6'' / 472mm |
| Air Cons. at Load | 53cfm / 25l/s |
| Vibration Level | ISO 28927 (M/S2) <2.5a / 0.5k |
| Sound Pressure/Power | 106 / 117 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
The CP1720R22 Chicago Pneumatic Corner Drill is designed for super intensive duty and precision in industrial maintenance and production applications. This drill is ideal for drilling, reaming and tapping of mild steel or cast iron.
| Model Number | CP1720R22 |
|---|---|
| Part Number | 615 158 0250 |
| Power | 1.2hp / 890w |
| Free Speed | 430RPM |
| Chuck Capacity | 7/8'' / 22mm |
| Spindle | M.T.2 |
| Stall Torque | 59.3ft.lb / 80.4Nm |
| Net Weight | 15.4lb / 7kg |
| Length | 18.6'' / 472mm |
| Air Cons. at Load | 53cfm / 25l/s |
| Vibration Level | ISO 28927 (M/S2) <2.5a / 0.5k |
| Sound Pressure/Power | 106 / 117 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
