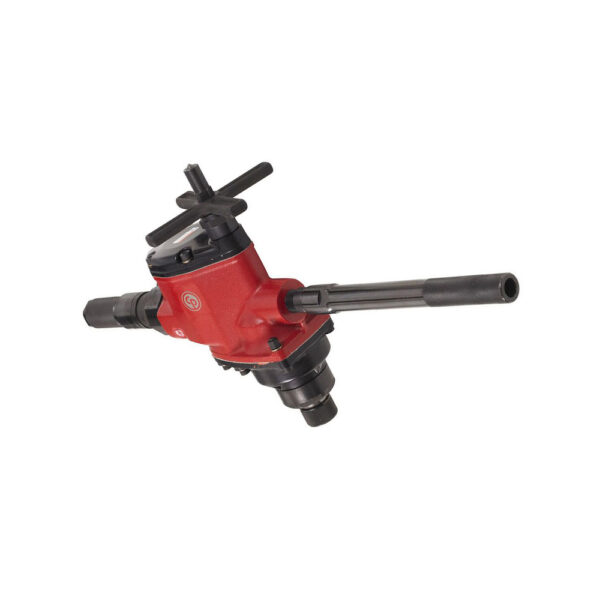

CP1820R32 Chicago Pneumatic T-Handle Drill. Part Number: 615 158 0290 Power: 2.8hp / 2,100w Free Speed: 380RPM Chuck Capacity: 1 1/4” / 32mm Spindle: M.T.3 Stall Torque: 144.6ft.lb / 196.0Nm Net Weight: 31.9lb / 14.5kg Length: 13.9” / 353mm
CP1820R32 Chicago Pneumatic T-Handle Drill The CP1820R32 Chicago Pneumatic T-Handle Drill is designed with the highest power, durability and precision with a 1-1/4” (32mm) reversible heavy duty drill and a free speed of 480RPM. This drill includes a powerful 1.2hp (890w) motor and a More Taper No. 2 drill socket.
The CP1820R32 Chicago Pneumatic T-Handle Drill is designed for super-intensive duty and high durability with precision. This drill is ideal for drilling, reaming, tapping of mild steel, cast iron and forged steel.
| Model Number | CP1820R32 |
|---|---|
| Part Number | 615 158 0290 |
| Power | 100w, 2.8hp / 2 |
| Free Speed | 380RPM |
| Chuck Capacity | 1 1/4'' / 32mm |
| Spindle | M.T.3 |
| Stall Torque | 144.6ft.lb / 196.0Nm |
| Net Weight | 31.9lb / 14.5kg |
| Length | 13.9'' / 353mm |
| Air Cons. at Load | 113cfm / 53l/s |
| Vibration Level | 5a / 0.k, ISO 28927 (M/S2) 2 |
| Sound Pressure/Power | 110 / 121 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
The CP1820R32 Chicago Pneumatic T-Handle Drill is designed for super-intensive duty and high durability with precision. This drill is ideal for drilling, reaming, tapping of mild steel, cast iron and forged steel.
| Model Number | CP1820R32 |
|---|---|
| Part Number | 615 158 0290 |
| Power | 100w, 2.8hp / 2 |
| Free Speed | 380RPM |
| Chuck Capacity | 1 1/4'' / 32mm |
| Spindle | M.T.3 |
| Stall Torque | 144.6ft.lb / 196.0Nm |
| Net Weight | 31.9lb / 14.5kg |
| Length | 13.9'' / 353mm |
| Air Cons. at Load | 113cfm / 53l/s |
| Vibration Level | 5a / 0.k, ISO 28927 (M/S2) 2 |
| Sound Pressure/Power | 110 / 121 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
