Discontinued

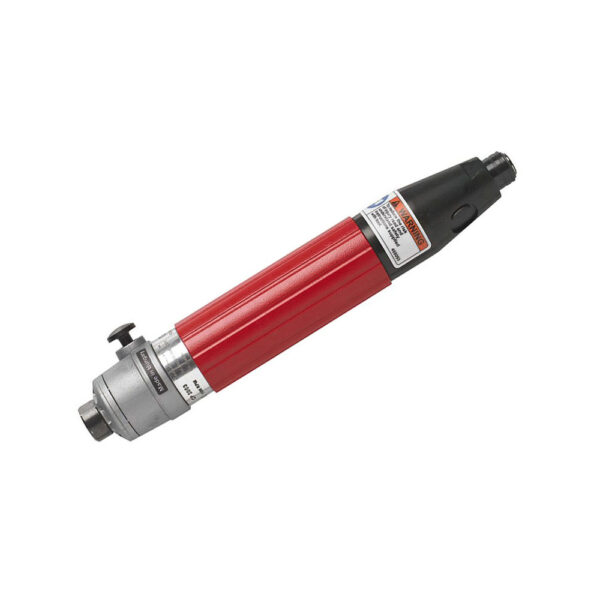

CP2003 Chicago Pneumatic Shut-Off Screwdriver. Part Number: 615 192 2003 Output Hex: 1/4” Free Speed: 1,100RPM Min. Torque: 0.295ft.lb / 0.4Nm Max. Torque: 1.106ft.lb / 1.5Nm Net Weight: 0.9lb / 0.4kg Length: 7.7” / 197mm
Discontinued
CP2003 Chicago Pneumatic Shut-Off Screwdriver The CP2003 Chicago Pneumatic Shut-Off Screwdriver was designed to be compact and lightweight for light assembly applications. The CP2003 Chicago Pneumatic Shut-Off Screwdriver features a straight Push-to Start operation with a convenient single handed forward/reverse operation.
The CP2003 Chicago Pneumatic Shut-Off Screwdriver has low noise level thanks to the compact design and is comfortable for operator during production operations. The CP2003 Chicago Pneumatic Shut-Off Screwdriver is reliable and accurate for various fastenings.
| Model Number | CP2003 |
|---|---|
| Part Number | 615 192 2003 |
| Output Hex | 1/4'' |
| Free Speed | 1, 100RPM |
| Min. Torque | 0.295ft.lb / 0.4Nm |
| Max Torque | 1.106ft.lb / 1.5Nm |
| Net Weight | 0.9lb / 0.4kg |
| Length | 9.3'' / 235mm |
| Free Speed Air Cons. | 8.5cfm / 4.0l/s |
| Vibration Level | ISO 28927 (M/S2) <2.5a / -k |
| Sound Pressure/Power | 73 / 84 ISO 15744-dB(A) |
| Air Intel | 1/4'' |
The CP2003 Chicago Pneumatic Shut-Off Screwdriver has low noise level thanks to the compact design and is comfortable for operator during production operations. The CP2003 Chicago Pneumatic Shut-Off Screwdriver is reliable and accurate for various fastenings.
| Model Number | CP2003 |
|---|---|
| Part Number | 615 192 2003 |
| Output Hex | 1/4'' |
| Free Speed | 1, 100RPM |
| Min. Torque | 0.295ft.lb / 0.4Nm |
| Max Torque | 1.106ft.lb / 1.5Nm |
| Net Weight | 0.9lb / 0.4kg |
| Length | 9.3'' / 235mm |
| Free Speed Air Cons. | 8.5cfm / 4.0l/s |
| Vibration Level | ISO 28927 (M/S2) <2.5a / -k |
| Sound Pressure/Power | 73 / 84 ISO 15744-dB(A) |
| Air Intel | 1/4'' |
