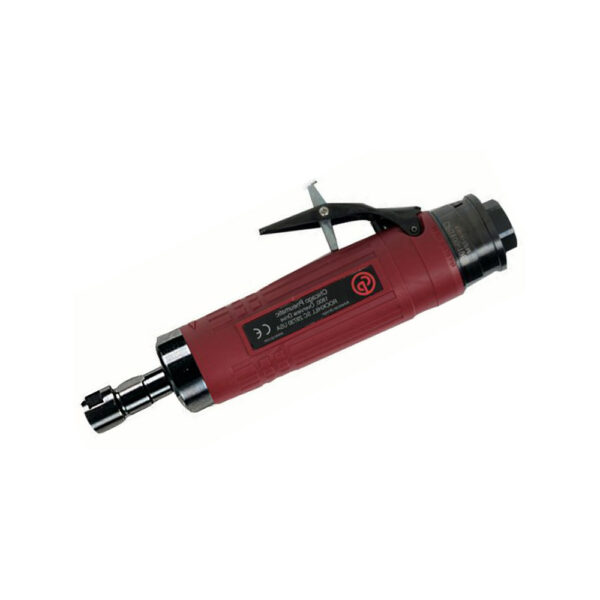

CP3109-28 Chicago Pneumatic Die Grinder. Part Number: 616 160 0040 Free Speed: 28,000RPM Power: 0.8hp /600w Collet Capacity: 1/4” / 6.35mm Air Cons. at Load: 31.8cfm / 15l/s Net Weight: 2.0lb / 0.9kg Length: 8.8” / 222mm
CP3109-28 Chicago Pneumatic Die Grinder The CP3109-28 Chicago Pneumatic Die Grinder is designed for high performance featuring steel housing with insulated composite over-housing and a streamlined safety lever. CP3109-28 Chicago Pneumatic Die Grinder runs at about 28,000RPM and shows very high productivity and durability in demanding applications with up to 2,000 hours between maintenance intervals.
| Model Number | CP3109-28 |
|---|---|
| Part Number | 616 160 0040 |
| Free Speed | 000rpm, 28 |
| Power | 0.8hp /600w |
| Collet Capacity | 1/4'' / 6.35mm |
| Air Cons. at Load | 31.8cfm / 15l/s |
| Net Weight | 2.0lb / 0.9kg |
| Length | 8.8'' / 222mm |
| Vibration Level | ISO 28927 (M/S2) <2.5a /-k |
| Sound Pressure/Power | 84 / 95 ISO 15744-dB(A) |
| Air Intel | 3/8'' |
