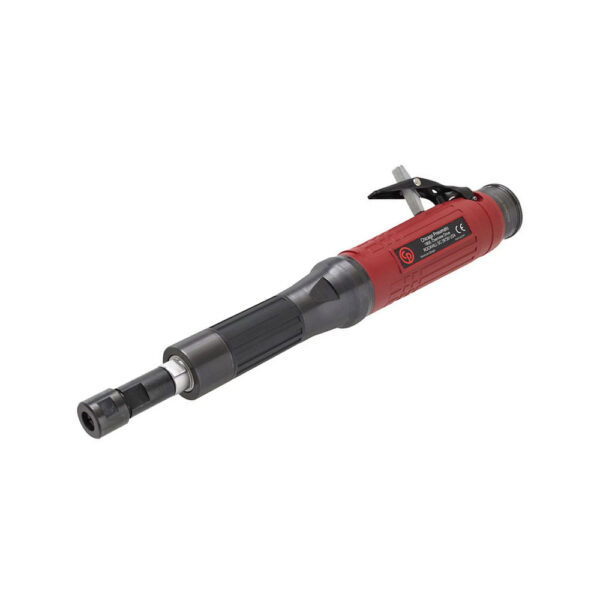

CP3109-28ES Chicago Pneumatic Die Grinder. Part Number: 616 160 2100 Free Speed: 28,000RPM Power: 0.8hp /600w Collet Capacity: 1/4” / 6.35mm Air Cons. at Load: 31.8cfm / 15l/s Net Weight: 2.9lb / 1.3kg Length: 14.5” / 361mm
CP3109-28ES Chicago Pneumatic Die Grinder The CP3109-28ES Chicago Pneumatic Die Grinder is designed for high performance featuring steel housing with insulated composite over-housing and a streamlined safety lever. CP3109-28ES Chicago Pneumatic Die Grinder runs with an extended shaft at about 28,000RPM and shows very high productivity and durability in demanding applications with up to 2,000 hours between maintenance intervals.
| Model Number | CP3109-28ES |
|---|---|
| Part Number | 616 160 2100 |
| Free Speed | 000rpm, 28 |
| Power | 0.8hp /600w |
| Collet Capacity | 1/4'' / 6.35mm |
| Air Cons. at Load | 31.8cfm / 15l/s |
| Net Weight | 2.9lb / 1.3kg |
| Length | 14.5'' / 361mm |
| Vibration Level | ISO 28927 (M/S2) <2.5a /-k |
| Sound Pressure/Power | 84 / 95 ISO 15744-dB(A) |
| Air Intel | 3/8'' |
| Model Number | CP3109-28ES |
|---|---|
| Part Number | 616 160 2100 |
| Free Speed | 000rpm, 28 |
| Power | 0.8hp /600w |
| Collet Capacity | 1/4'' / 6.35mm |
| Air Cons. at Load | 31.8cfm / 15l/s |
| Net Weight | 2.9lb / 1.3kg |
| Length | 14.5'' / 361mm |
| Vibration Level | ISO 28927 (M/S2) <2.5a /-k |
| Sound Pressure/Power | 84 / 95 ISO 15744-dB(A) |
| Air Intel | 3/8'' |
