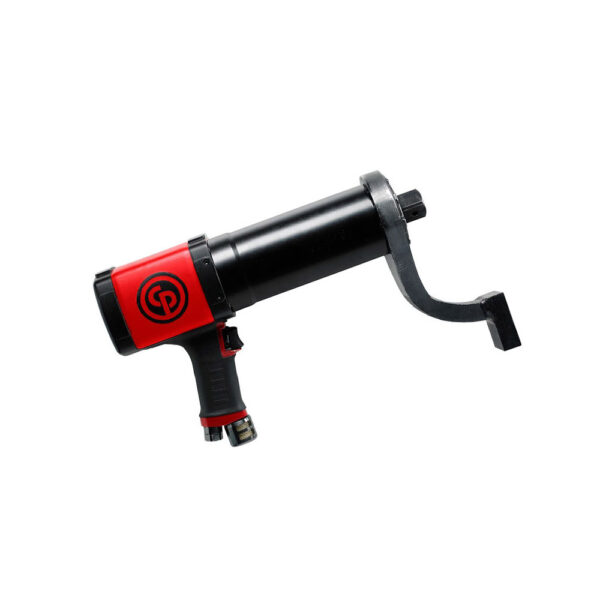

CP6641 Chicago Pneumatic Stall Nutrunner. Square Drive: 1” Bolt Size: 30-45mm / 1-3/16”-1-3/4” Free Speed at 6.3 Bars: 10RPM Min. Torque at 1.5 Bars: 738ft.lb / 1000Nm Max. Torque at 6.3 Bars: 3100ft.lb / 4100Nm
CP6641 Chicago Pneumatic Stall Nutrunner The CP6641 Chicago Pneumatic Stall Nutrunner is great for flange-related and other bolting applications in oil/gas, power generation and wind energy segments and is also valuable for remanufacturing, maintenance, repair/overhaul operations in mining. CP6641 Chicago Pneumatic Stall Nutrunner is capable of reaching high torque accuracy and has a replaceable protective cover with integrated bumper. CP6641 Chicago Pneumatic Stall Nutrunner features continuous rotation for any heavy duty fastening and effortless access to the tightening point with one of the smallest yes most reliable gearboxes running through 13,000 cycles before maintenance.
CP6641 Chicago Pneumatic Stall Nutrunner features an ergonomic, lightweight special Chicago Pneumatic design grip swiveling handle with a one-finger reverse mode. CP6641 Chicago Pneumatic Stall Nutrunner has a vane type performance air motor (same as industrial impact wrench) and due to the Weldox700 material there is less strain during operation and features many different arm types/shapes available.
Model Number | CP6641 |
---|---|
Part Number | 615 180 0110 |
Square Drive | 1'' |
Bolt Size | 30-45mm / 1-3/16''-1-3/4'' |
Free Speed at 6.3 Bars | 10RPM |
Min. Torque at 1.5 Bars | 738ft.lb / 1000Nm |
Max. Torque at 6.3 Bars | 3100ft.lb / 4100Nm |
Air Cons. at Load | 65cfm / 31l/s |
Tool Weight w/o Reaction Arm | 19.4lbs / 8.8kg |
Tool Weight w/ Reaction Arm | 21.8lbs / 9.9kg |
Sound Pressure | 101dB(A) |
Air Inlet Thread NPT | 3/8'' |
Vibration | <2.5 m/s4 |
CP6641 Chicago Pneumatic Stall Nutrunner features an ergonomic, lightweight special Chicago Pneumatic design grip swiveling handle with a one-finger reverse mode. CP6641 Chicago Pneumatic Stall Nutrunner has a vane type performance air motor (same as industrial impact wrench) and due to the Weldox700 material there is less strain during operation and features many different arm types/shapes available.
Model Number | CP6641 |
---|---|
Part Number | 615 180 0110 |
Square Drive | 1'' |
Bolt Size | 30-45mm / 1-3/16''-1-3/4'' |
Free Speed at 6.3 Bars | 10RPM |
Min. Torque at 1.5 Bars | 738ft.lb / 1000Nm |
Max. Torque at 6.3 Bars | 3100ft.lb / 4100Nm |
Air Cons. at Load | 65cfm / 31l/s |
Tool Weight w/o Reaction Arm | 19.4lbs / 8.8kg |
Tool Weight w/ Reaction Arm | 21.8lbs / 9.9kg |
Sound Pressure | 101dB(A) |
Air Inlet Thread NPT | 3/8'' |
Vibration | <2.5 m/s4 |
