CP6773-D18D Chicago Pneumatic 1” Impact Wrench. Drive: 1” Blows Per Minute: 730 Free Speed: 6,600RPM Working Torque (FW): 250-1070ft.lb / 340-1450Nm Max. Torque (REV): 1,300ft.lb / 1760 Net Weight: 14.7lb / 6.7kg Length: 11.4” / 290mm

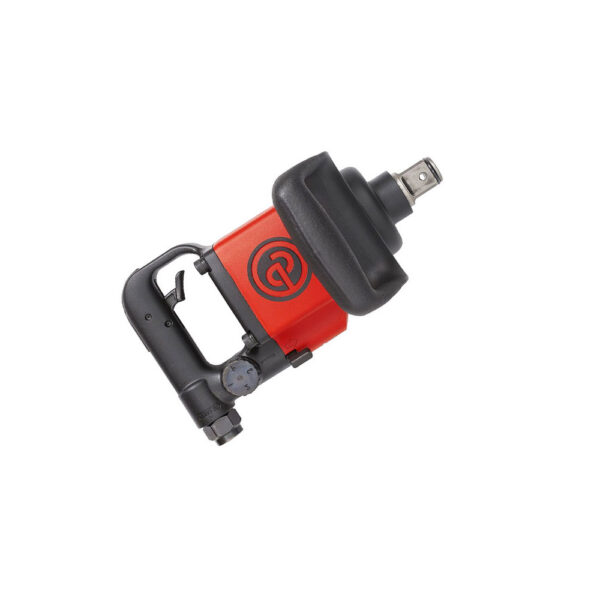

CP6773-D18D Chicago Pneumatic 1” Impact Wrench The CP6773-D18D Chicago Pneumatic 1” Impact Wrench features a compact and robust D-handle making it easy to carry for Industrial Maintenance applications giving less fatigue to operator during use. The CP6773-D18D Chicago Pneumatic 1” Impact Wrench features a robust steel clutch housings as well as aluminum motor housing and the powerful untightening torque goes 1,300ft.lb (1,760Nm) and features robust reverse settings. The CP6773-D18D Chicago Pneumatic 1” Impact Wrench is ideal for many industrial MRO projects with a hole and ring retaining system making it flexible and safe.
| Model Number | CP6773-D18D |
|---|---|
| Part Number | 615 159 0650 |
| Drive | 1'' |
| Blows Per Minute | 730 |
| Free Speed | 6, 600RPM |
| Working Torque (FW) | 250-1070ft.lb / 340-1450Nm |
| Max. Torque (REV) | 1, 300ft.lb / 1760 |
| Net Weight | 14.7lb / 6.7kg |
| Length | 11.4'' / 290mm |
| Air Cons. at Load | 41cfm / 19.3l/s |
| Vibration Level | ISO 28927 (M/S2) 11.4 / 2.9K |
| Sound Pressure/Power | 98 / 109 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
| Model Number | CP6773-D18D |
|---|---|
| Part Number | 615 159 0650 |
| Drive | 1'' |
| Blows Per Minute | 730 |
| Free Speed | 6, 600RPM |
| Working Torque (FW) | 250-1070ft.lb / 340-1450Nm |
| Max. Torque (REV) | 1, 300ft.lb / 1760 |
| Net Weight | 14.7lb / 6.7kg |
| Length | 11.4'' / 290mm |
| Air Cons. at Load | 41cfm / 19.3l/s |
| Vibration Level | ISO 28927 (M/S2) 11.4 / 2.9K |
| Sound Pressure/Power | 98 / 109 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
Discontinued
