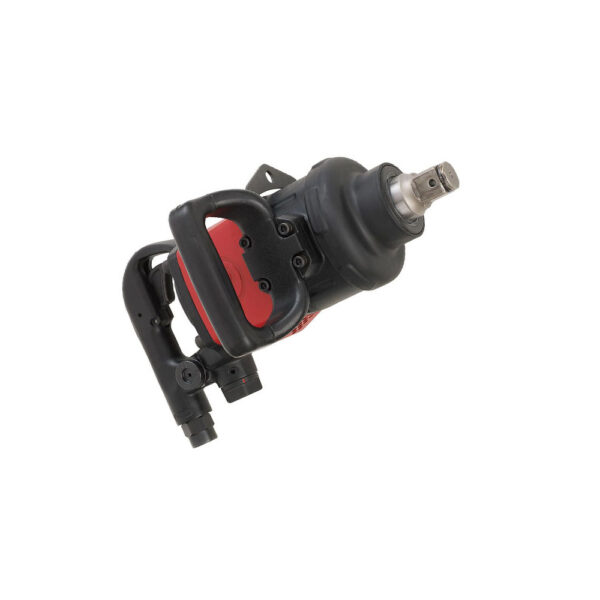

CP6920-D24 Chicago Pneumatic 1” Impact Wrench. Drive: 1” Blows Per Minute: 650 Free Speed: 5000RPM Working Torque (FW): 370-1,500ft.lb / 500/2,100Nm Max. Torque (REV): 1,920ft.lb / 2,600Nm Net Weight: 22.7lb / 10.3kg Length: 14.2” / 360mm
CP6920-D24 Chicago Pneumatic 1” Impact Wrench The CP6920-D24 Chicago Pneumatic 1” Impact Wrench features a reliable and powerful oil bath Pinless Rocking Dog clutch making for optimized operator comfort with many ergonomic features. CP6920-D24 Chicago Pneumatic 1” Impact Wrench is powerful, fast and ergonomic and features a durable aluminum body and rubber protective cover on clutch housing for safety measures. The CP6920-D24 Chicago Pneumatic 1” Impact Wrench features a motor with reinforced steel plates for an even greater durability.
| Model Number | CP6290-D24 |
|---|---|
| Part Number | 615 159 0080 |
| Drive | 1'' |
| Blows Per Minute | 650 |
| Free Speed | 5000RPM |
| Working Torque (FW) | 100Nm, 370-1, 500ft.lb / 500/2 |
| Max. Torque (REV) | 1, 600Nm, 920ft.lb / 2 |
| Net Weight | 22.7lb / 10.3kg |
| Length | 14.2'' / 360mm |
| Air Cons. at Load | 40.2cfm / 19l/s |
| Vibration Level | ISO 28927 (M/S2) 8.4a /2.8k |
| Sound Pressure/Power | 100 / 111 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
| Model Number | CP6290-D24 |
|---|---|
| Part Number | 615 159 0080 |
| Drive | 1'' |
| Blows Per Minute | 650 |
| Free Speed | 5000RPM |
| Working Torque (FW) | 100Nm, 370-1, 500ft.lb / 500/2 |
| Max. Torque (REV) | 1, 600Nm, 920ft.lb / 2 |
| Net Weight | 22.7lb / 10.3kg |
| Length | 14.2'' / 360mm |
| Air Cons. at Load | 40.2cfm / 19l/s |
| Vibration Level | ISO 28927 (M/S2) 8.4a /2.8k |
| Sound Pressure/Power | 100 / 111 ISO 15744-dB(A) |
| Air Intel | 1/2'' |
Discontinued
