CP7600C-R Chicago Pneumatic Bluetork Nutrunners. Part Number: 8941076025 Square Drive: 1” Shut-Off Torque Range (Min): 330ft.lb/450Nm Shut-Off Torque Range (Max): 665ft.lb/900Nm Free Speed: 100 RPM Max. Air Consumption: 40cfm/19l/s Air Inlet: 3/8”

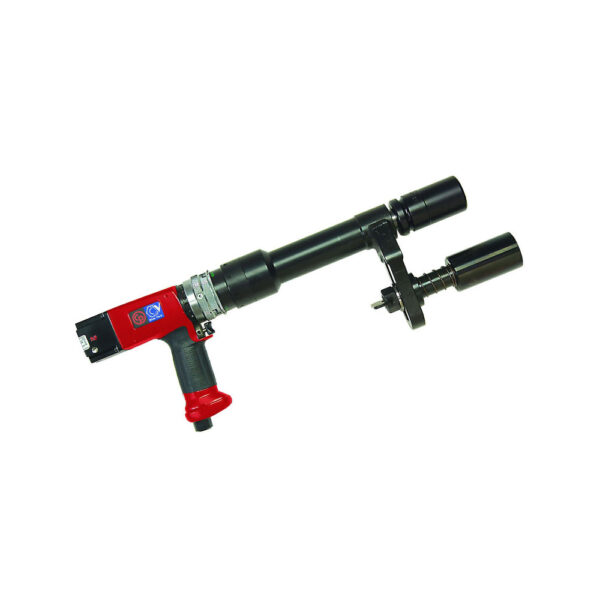

CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner features an Air Shut-Off clutch at preset torque with an integrated reaction bar standard with blade and a low noise level at about 79 dB(A). The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner has an accuracy torque of about (+/-5 percent) and the increased operator comfort for greater productivity.
The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner has selection up to 4 calibrated tightening torques. The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner includes a long-reaching reaction with one torque preset and can forward and reverse.
| Model Number | CP7600xC-R4P |
|---|---|
| Part Number | 894 107 6025 |
| Square Drive | 1'' |
| Shut-Off Torque Range (Min) | 330ft.lb / 450Nm |
| Shut-Off Torque Range (Max) | 665ft.lb / 900Nm |
| Free Speed | 100 RPM |
| Max. Air Consumption | 40cfm / 19l/s |
| Air Inlet | 3/8'' |
| Reaction Bar Type | xC Reaction Bar |
| Reversibility | Reversible |
| Torque Presets | 4 |
| Overall Length | 19.5'' / 495mm |
| Net Weight | 20.1lb / 9.1kg |
The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner has selection up to 4 calibrated tightening torques. The CP7600xC-R4P Chicago Pneumatic Bluetork Nutrunner includes a long-reaching reaction with one torque preset and can forward and reverse.
| Model Number | CP7600xC-R4P |
|---|---|
| Part Number | 894 107 6025 |
| Square Drive | 1'' |
| Shut-Off Torque Range (Min) | 330ft.lb / 450Nm |
| Shut-Off Torque Range (Max) | 665ft.lb / 900Nm |
| Free Speed | 100 RPM |
| Max. Air Consumption | 40cfm / 19l/s |
| Air Inlet | 3/8'' |
| Reaction Bar Type | xC Reaction Bar |
| Reversibility | Reversible |
| Torque Presets | 4 |
| Overall Length | 19.5'' / 495mm |
| Net Weight | 20.1lb / 9.1kg |
