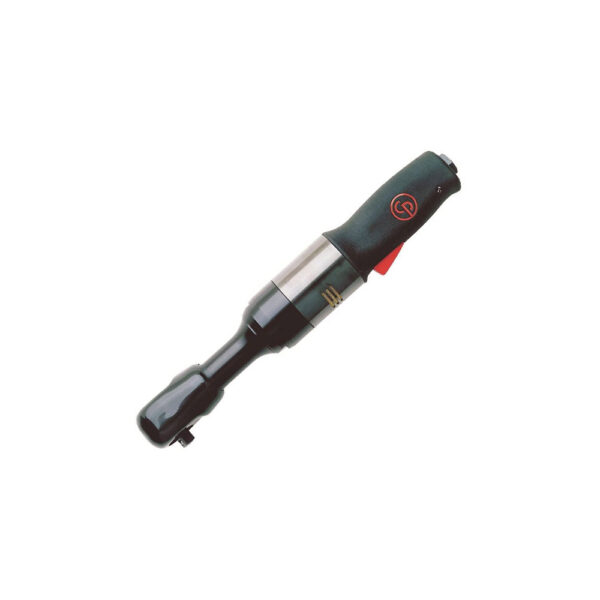

CP7830Q Chicago Pneumatic 3/8” Quiet Ratchet. Drive: 3/8” Free Speed RPM: 190 Working Torque (FW): 10-90ft.lb / 13-122Nm Max Torque (FW): 90ft.lb / 122Nm Net Weight: 2.7lb / 1.2kg Length: 12” / 305mm Air Cons at Free Speed: 21.0cfm / 8.7l/s
CP7830Q Chicago Pneumatic 3/8” Quiet Ratchet The CP7830Q Chicago Pneumatic 3/8” Quiet Ratchet features an adjustable side exhaust creating very low noise when in use and a progressive tease throttle. The CP7830Q Chicago Pneumatic 3/8” Quiet Ratchet was created to be durable with high torque and is the highest torque on the market at 90ft.lbs (122Nm). The CP7830Q Chicago Pneumatic 3/8” Quiet Ratchet is light weight and well balanced and should be used for General Maintenance applications.
| Model Number | CP7830Q |
|---|---|
| Part Number | 894 107 8306 |
| Drive | 3/8'' |
| Free Speed (rpm) | 190 |
| Working Torque (FW) | 10-90ft.lb / 13-122Nm |
| Max Torque (FW) | 90ft.lb / 122Nm |
| Net Weight | 2.7lb / 1.2kg |
| Length | 12'' / 305mm |
| Air Cons at Free Speed | 21.0cfm / 8.7l/s |
| Vibration Level | ISO 2897(M/S2) 4.1a / 1.4k |
| Sound Press/Sound Power | 85/96 ISO 15744 – db(a) |
| Air Inlet | 1/4'' |
| Model Number | CP7830Q |
|---|---|
| Part Number | 894 107 8306 |
| Drive | 3/8'' |
| Free Speed (rpm) | 190 |
| Working Torque (FW) | 10-90ft.lb / 13-122Nm |
| Max Torque (FW) | 90ft.lb / 122Nm |
| Net Weight | 2.7lb / 1.2kg |
| Length | 12'' / 305mm |
| Air Cons at Free Speed | 21.0cfm / 8.7l/s |
| Vibration Level | ISO 2897(M/S2) 4.1a / 1.4k |
| Sound Press/Sound Power | 85/96 ISO 15744 – db(a) |
| Air Inlet | 1/4'' |
Discontinued
