Discontinued

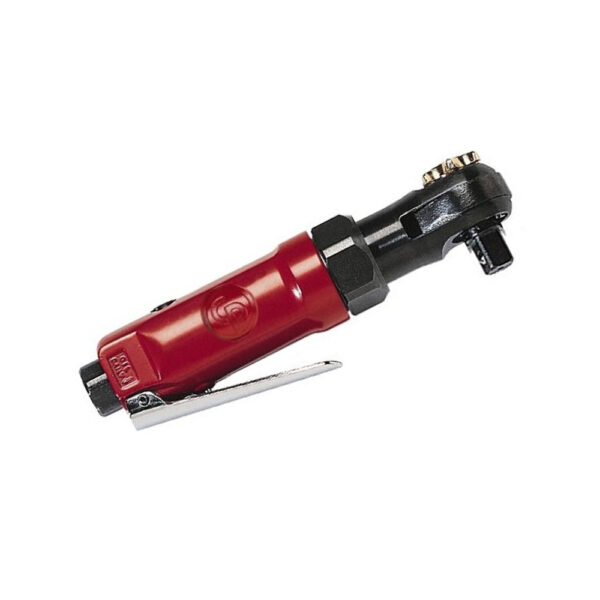

CP825T Chicago Pneumatic 3/8” Ratchet. Drive: 3/8” Free Speed RPM: 200 Working Torque (FW): 5-15ft.lb / 7-21Nm Max Torque (FW): 15ft.lb / 21Nm Net Weight: 1.9lb / 0.9kg Length: 6.5” / 165mm Air Cons at Free Speed: 11.0cfm / 5.1l/s
Discontinued
CP825T Chicago Pneumatic 3/8” Ratchet The CP825T Chicago Pneumatic 3/8” Ratchet features a progressive tease throttle and though this is a small ratchet only being 6.5” (165mm) long the compact and lightweight feel makes it ideal for access application and hard to reach areas. The CP825T Chicago Pneumatic 3/8” Ratchet features a convenient forward and reverse button and should be used for General Maintenance.
| Model Number | CP825T |
|---|---|
| Part Number | T023190 |
| Drive | 3/8'' |
| Free Speed (rpm) | 200 |
| Working Torque (FW) | 5-15ft.lb / 7-21Nm |
| Max Torque (FW) | 15ft.lb / 21Nm |
| Net Weight | 1.9lb / 0.9kg |
| Length | 6.5'' / 165mm |
| Air Cons at Free Speed | 11.0cfm / 5.1l/s |
| Vibration Level | ISO 2897(M/S2) 3a / 1.2k |
| Sound Press/Sound Power | 87/98 ISO 15744 – db(a) |
| Air Inlet | 1/4'' |
| Model Number | CP825T |
|---|---|
| Part Number | T023190 |
| Drive | 3/8'' |
| Free Speed (rpm) | 200 |
| Working Torque (FW) | 5-15ft.lb / 7-21Nm |
| Max Torque (FW) | 15ft.lb / 21Nm |
| Net Weight | 1.9lb / 0.9kg |
| Length | 6.5'' / 165mm |
| Air Cons at Free Speed | 11.0cfm / 5.1l/s |
| Vibration Level | ISO 2897(M/S2) 3a / 1.2k |
| Sound Press/Sound Power | 87/98 ISO 15744 – db(a) |
| Air Inlet | 1/4'' |
