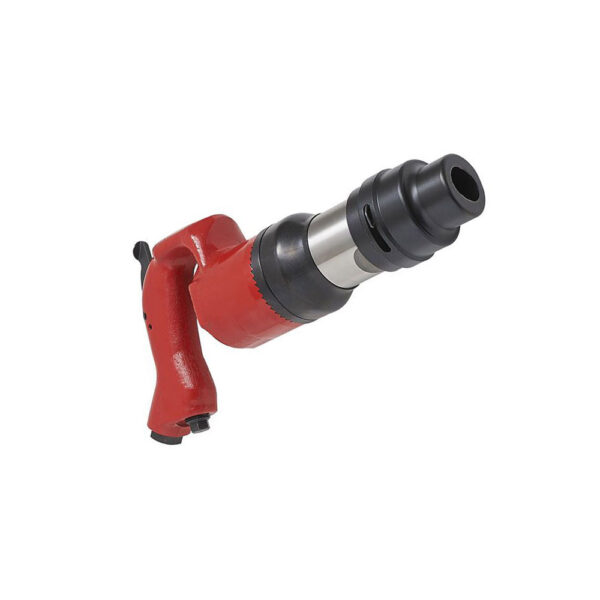

CP9363-1H Chicago Pneumatic Chipping Hammer. Part Number: 615 161 2040 Bore: 1.1” / 29mm Stroke: 1” / 25mm Shank: Hexagonal / .580” / 14.7mm Blows Per Minute: 2,750blows/min Power: 6.2joule Air Cons. at Load: 28.0cfm / 13.2l/s Weight: 15.0lb / 6.8kg
CP9363-1H Chicago Pneumatic Chipping Hammer The CP93 Series is designed to be durable and robust in very demanding applications. These chipping hammers feature a secure grip for maximum safety and have with easy chisel replacements
The CP9363-1H Chicago Pneumatic Chipping Hammer is designed to have a robust and ergonomic gooseneck grip with both 14” (355mm) round and hexagonal shanks. This chipping hammer features an adjustable steel exhaust deflector and an easy chisel replacement design. (Not for CE Market).
| Model Number | CP9363-1H |
|---|---|
| Part Number | 615 161 2040 |
| Bore | 1.1'' / 29mm |
| Stroke | 1'' / 25mm |
| Shank | Hexagonal / .580'' / 14.7mm |
| Blows Per Minute | 2, 750blows/min |
| Power | 6.2joule |
| Air Cons. at Load | 28.0cfm / 13.2l/s |
| Weight | 15.0lb / 6.8kg |
| Length | 14.0'' / 355mm |
| Vibration Level | ISO 28927(M/S2) 12.8a / 2.8k |
| Sound Press/Power | 102, 8 / 114 ISO 15744-dB(A) |
| Air Inlet | 3/8'' |
The CP9363-1H Chicago Pneumatic Chipping Hammer is designed to have a robust and ergonomic gooseneck grip with both 14” (355mm) round and hexagonal shanks. This chipping hammer features an adjustable steel exhaust deflector and an easy chisel replacement design. (Not for CE Market).
| Model Number | CP9363-1H |
|---|---|
| Part Number | 615 161 2040 |
| Bore | 1.1'' / 29mm |
| Stroke | 1'' / 25mm |
| Shank | Hexagonal / .580'' / 14.7mm |
| Blows Per Minute | 2, 750blows/min |
| Power | 6.2joule |
| Air Cons. at Load | 28.0cfm / 13.2l/s |
| Weight | 15.0lb / 6.8kg |
| Length | 14.0'' / 355mm |
| Vibration Level | ISO 28927(M/S2) 12.8a / 2.8k |
| Sound Press/Power | 102, 8 / 114 ISO 15744-dB(A) |
| Air Inlet | 3/8'' |
