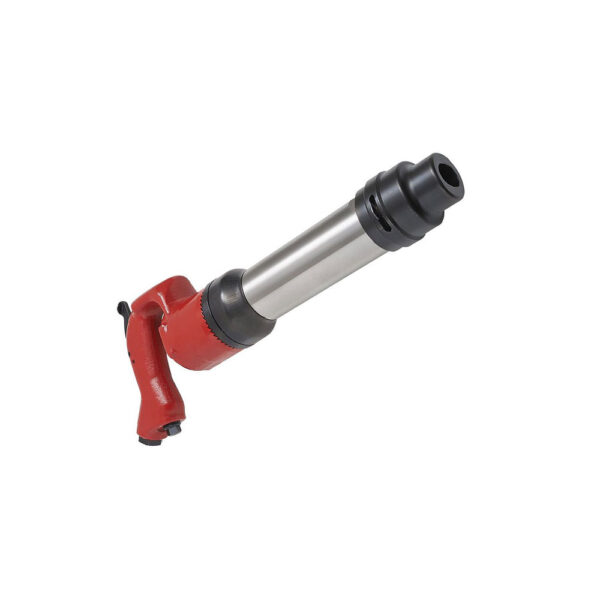

CP9363-4R Chicago Pneumatic Chipping Hammer. Part Number: 615 161 2090 Bore: 1.1” / 29mm Stroke: 4” / 102mm Shank: Round / .680” / 17.2mm Blows Per Minute: 1,600blows/min Power: 25.5joule Air Cons. at Load: 33.0cfm / 15.7l/s Weight: 18.4lb / 8.4kg
CP9363-4R Chicago Pneumatic Chipping Hammer The CP93 Series is designed to be durable and robust in very demanding applications. These chipping hammers feature a secure grip for maximum safety and have with easy chisel replacements
The CP9363-4R Chicago Pneumatic Chipping Hammer is designed to have a robust and ergonomic gooseneck grip with both 18.5” (470mm) round and hexagonal shanks. This chipping hammer features an adjustable steel exhaust deflector and an easy chisel replacement design. (Not for CE Market).
| Model Number | CP9363-4R |
|---|---|
| Part Number | 615 161 2090 |
| Bore | 1.1'' / 29mm |
| Stroke | 4'' / 102mm |
| Shank | Round / .680'' / 17.2mm |
| Blows Per Minute | 1, 600blows/min |
| Power | 25.5joule |
| Air Cons. at Load | 33.0cfm / 15.7l/s |
| Weight | 18.4lb / 8.4kg |
| Length | 18.5'' / 470mm |
| Vibration Level | ISO 28927(M/S2) 16.2a / 3.3k |
| Sound Press/Power | 1 / 115 ISO 15744-dB(A), 104 |
| Air Inlet | 3/8'' |
The CP9363-4R Chicago Pneumatic Chipping Hammer is designed to have a robust and ergonomic gooseneck grip with both 18.5” (470mm) round and hexagonal shanks. This chipping hammer features an adjustable steel exhaust deflector and an easy chisel replacement design. (Not for CE Market).
| Model Number | CP9363-4R |
|---|---|
| Part Number | 615 161 2090 |
| Bore | 1.1'' / 29mm |
| Stroke | 4'' / 102mm |
| Shank | Round / .680'' / 17.2mm |
| Blows Per Minute | 1, 600blows/min |
| Power | 25.5joule |
| Air Cons. at Load | 33.0cfm / 15.7l/s |
| Weight | 18.4lb / 8.4kg |
| Length | 18.5'' / 470mm |
| Vibration Level | ISO 28927(M/S2) 16.2a / 3.3k |
| Sound Press/Power | 1 / 115 ISO 15744-dB(A), 104 |
| Air Inlet | 3/8'' |
