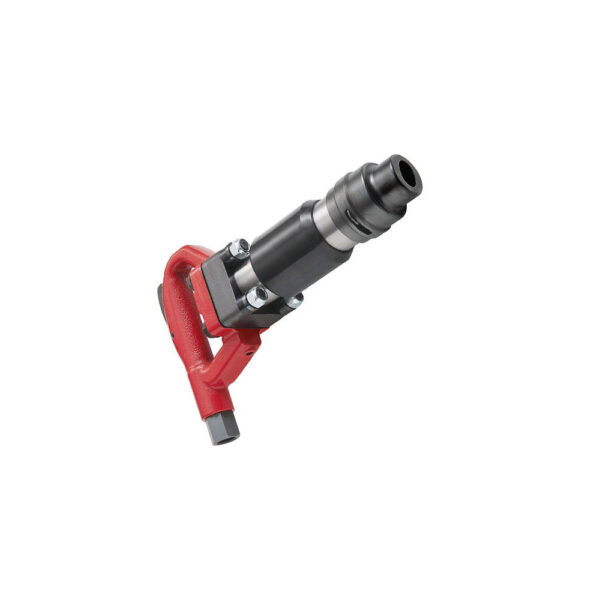

CP9373-2H Chicago Pneumatic Chipping Hammer. Part Number: 615 161 2120 Bore: 1.1” / 29mm Stroke: 2” / 51mm Shank: Hexagonal / .580” / 14.7mm Blows Per Minute: 2,600blows/min Power: 12.7joule Air Cons. at Load: 30.0cfm / 14.0l/s Weight: 17.9lb / 8.2kg
CP9373-2H Chicago Pneumatic Chipping Hammer The CP93 Series is designed to be durable and robust in very demanding applications. These chipping hammers feature a secure grip for maximum safety and have with easy chisel replacements
The CP9373-2H Chicago Pneumatic Chipping Hammer features a secure and durable D-handle grip with heavy duty 4 bolt construction. This chipping hammer includes a rubber exhaust deflector and is 14.6” (370mm) long in both round or hexagonal shanks. The CP9373-2H Chicago Pneumatic Chipping Hammer should be used for castings cleaning, deburring, scaling applications, weld flux chipping, rivet busting and concrete mixer cleaning.(Not for CE Market).
| Model Number | CP9373-2H |
|---|---|
| Part Number | 615 161 2120 |
| Bore | 1.1'' / 29mm |
| Stroke | 2'' / 51mm |
| Shank | Hexagonal / .580'' / 14.7mm |
| Blows Per Minute | 2, 600blows/min |
| Power | 12.7joule |
| Air Cons. at Load | 30.0cfm / 14.0l/s |
| Weight | 17.9lb / 8.2kg |
| Length | 14.6'' / 370mm |
| Vibration Level | ISO 28927(M/S2) 12.4a / 3.9k |
| Sound Press/Power | 6 / 111 ISO 15744-dB(A), 99 |
| Air Inlet | 7/8'' |
The CP9373-2H Chicago Pneumatic Chipping Hammer features a secure and durable D-handle grip with heavy duty 4 bolt construction. This chipping hammer includes a rubber exhaust deflector and is 14.6” (370mm) long in both round or hexagonal shanks. The CP9373-2H Chicago Pneumatic Chipping Hammer should be used for castings cleaning, deburring, scaling applications, weld flux chipping, rivet busting and concrete mixer cleaning.(Not for CE Market).
| Model Number | CP9373-2H |
|---|---|
| Part Number | 615 161 2120 |
| Bore | 1.1'' / 29mm |
| Stroke | 2'' / 51mm |
| Shank | Hexagonal / .580'' / 14.7mm |
| Blows Per Minute | 2, 600blows/min |
| Power | 12.7joule |
| Air Cons. at Load | 30.0cfm / 14.0l/s |
| Weight | 17.9lb / 8.2kg |
| Length | 14.6'' / 370mm |
| Vibration Level | ISO 28927(M/S2) 12.4a / 3.9k |
| Sound Press/Power | 6 / 111 ISO 15744-dB(A), 99 |
| Air Inlet | 7/8'' |
