Model: FBM-300-3 Handle: Normal Roll Handle Capacity: 120-240mm/4 23/32”-9 29/64” Stall Torque: 431N.m/318ft.lb Rotational Frequency: 75m-¹ Feed Length: 60mm/2.36” Side To Center: 135.0mm/5 5/16” Overall Length: 603mm/23.7”

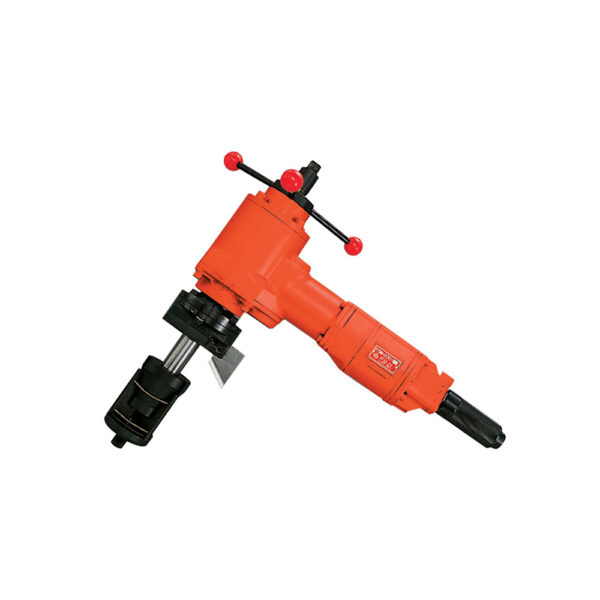

Fuji Pipe Bevelling Machine Description:
Fuji Pipe Bevelling Machine
| Model Type | FBM-300-3 |
|---|---|
| Handle | Normal Roll Handle |
| Capacity (Pipe Inside Dia.) | 120-240mm/4 23/32''-9 29/64'' |
| Stall Torque | 431N.m/318ft.lb |
| Rotational Frequency | 75m-¹ |
| Feed Length | 60mm/2.36'' |
| Side To Center | 135.0mm/5 5/16'' |
| Overall Length | 603mm/23.7'' |
| Weight | 26.8kg/60lbs |
| Air Consumption(At Load) | 1.68m³/min / 59.5ft³/min |
Fuji Pipe Bevelling Machine
| Model Type | FBM-300-3 |
|---|---|
| Handle | Normal Roll Handle |
| Capacity (Pipe Inside Dia.) | 120-240mm/4 23/32''-9 29/64'' |
| Stall Torque | 431N.m/318ft.lb |
| Rotational Frequency | 75m-¹ |
| Feed Length | 60mm/2.36'' |
| Side To Center | 135.0mm/5 5/16'' |
| Overall Length | 603mm/23.7'' |
| Weight | 26.8kg/60lbs |
| Air Consumption(At Load) | 1.68m³/min / 59.5ft³/min |
