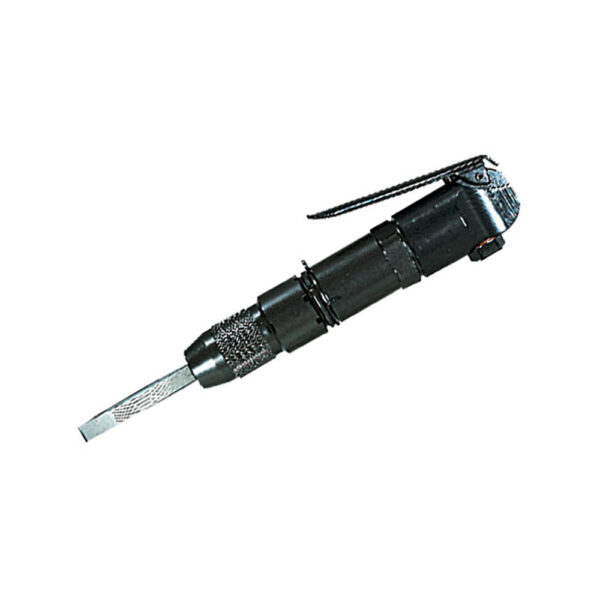

Fuji FCH-20 E Flux Chippers. Part Number: 5412052552 Model: FCH-20 E Throttle Type: Lever Blows: 90Hz Piston Diameter: 20mm/0.787” Stroke: 16mm/0.63” Overall Length: 176mm/6.93”
Fuji FCH-20 E Flux Chippers. Fuji flux chippers are ideal for various removal operations; light chipping, carving stone, scaling, removing paint, rust, weld flux and light fins from castings.
Attachments, such as chisels and needles, can be quickly and easily changed. The locking handle are designed to reduce the risk of accidental starting of the tools. The handle is automatically locked when the operator releases the handle.
Low air consumption 0.14-0.18 m3/min (due to the valve mechanism) enables Fuji flux chippers to be used with a smaller compressor. The built-in Sleeve Valve allows the operator to adjust the blow frequency by adjusting the throttle valve.
Part Number | 5412052552 |
---|---|
Model Type | FCH-20 E |
Throttle Type | Lever |
Blows | 90Hz |
Piston Diameter | 20mm/0.787'' |
Stroke | 16mm/0.63'' |
Overall Length | 176mm/6.93'' |
Weight | 0.8kg/1.8lbs |
Air Consumption (At Load) | 0.14m?/min / 4.9ft?/min |
Air Hose Size | 6.3mm/1/4'' |
Attachments, such as chisels and needles, can be quickly and easily changed. The locking handle are designed to reduce the risk of accidental starting of the tools. The handle is automatically locked when the operator releases the handle.
Low air consumption 0.14-0.18 m3/min (due to the valve mechanism) enables Fuji flux chippers to be used with a smaller compressor. The built-in Sleeve Valve allows the operator to adjust the blow frequency by adjusting the throttle valve.
Part Number | 5412052552 |
---|---|
Model Type | FCH-20 E |
Throttle Type | Lever |
Blows | 90Hz |
Piston Diameter | 20mm/0.787'' |
Stroke | 16mm/0.63'' |
Overall Length | 176mm/6.93'' |
Weight | 0.8kg/1.8lbs |
Air Consumption (At Load) | 0.14m?/min / 4.9ft?/min |
Air Hose Size | 6.3mm/1/4'' |
