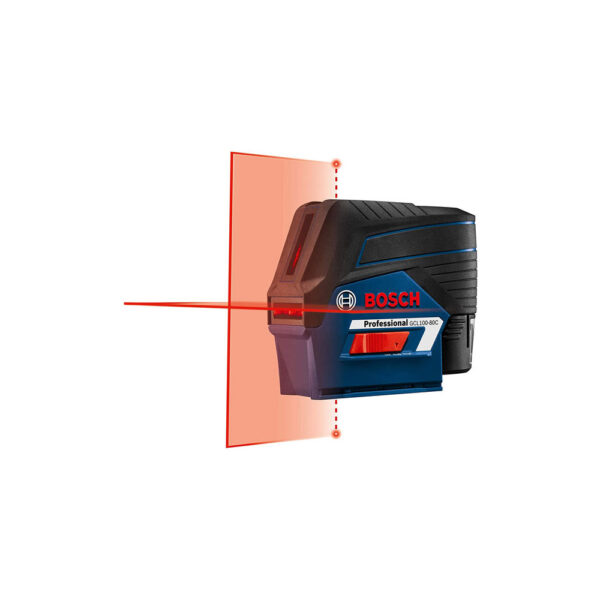

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points

Price: Price On Request

Part Number: GCL100-80C

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points. Accuracy: Laser lines: +/- 1/8 at 30 ft; Laser points: +/- 9/32 at 30 ft Height: 4.8” IP Rating: IP 54 Laser Diode: Class II, 630 650 nm Leveling Type: Self-Leveling, Up to 4°

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points Description

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points features all-in-one versatility with highly visible lines and points providing horizontal level, vertical alignment and plumb point transfer applications. GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points features Bosch-exclusive VisiMax™ technology which monitors tools temperature and power consumption to deliver the brightest line and a Bosch 12V Max Lithium-ion power for extended laser runtime during complex or all day layout jobs providing a visible range of 100ft and can work with an option Bosh laser receiver to extend that range to 165ft.

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points uses Smart Pendulum System self-levels up to +/- 4 ° while indicating out-of-level conditions and manual mode locks lines for use at any angle. GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points comes with the RM 2 Magnetic Rotating Mount that rotates 360° and has a micro-dine adjustment knob that includes and ceiling grid clip.

Technical Specifications

Additional information

Part Number

GCL100-80C

Accuracy

Laser lines

Battery Voltage

12V

Height

4.8''

IP Rating

IP 54

Laser Diode

630 650 nm, Class II

Length

5.4''

Leveling Type

Self-Leveling, Up to 4°

Material

Plastic with overmold

Mount Threading

1/4-20

Operating temperature

14° F / -10° C ~1 22° F / 50° C

Range

Up to 100ft

Weight

1.4lbs

Width

2.2''

Included Components

1 12V Max Lithium-Ion 2.0 Ah Battery, 1 12V Max Lithium-Ion Battery Charger, 1 Ceiling Grid Clip, 1 GCL100-80C 12V Max Connected Cross-Line Laser with Plumb Points, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target Plate, 1 RM 2 Mount

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points features all-in-one versatility with highly visible lines and points providing horizontal level, vertical alignment and plumb point transfer applications. GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points features Bosch-exclusive VisiMax™ technology which monitors tools temperature and power consumption to deliver the brightest line and a Bosch 12V Max Lithium-ion power for extended laser runtime during complex or all day layout jobs providing a visible range of 100ft and can work with an option Bosh laser receiver to extend that range to 165ft.

GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points uses Smart Pendulum System self-levels up to +/- 4 ° while indicating out-of-level conditions and manual mode locks lines for use at any angle. GCL100-80C Bosch 12V Max Connected Cross-Line Laser with Plumb Points comes with the RM 2 Magnetic Rotating Mount that rotates 360° and has a micro-dine adjustment knob that includes and ceiling grid clip.

Additional information

Part Number

GCL100-80C

Accuracy

Laser lines

Battery Voltage

12V

Height

4.8''

IP Rating

IP 54

Laser Diode

630 650 nm, Class II

Length

5.4''

Leveling Type

Self-Leveling, Up to 4°

Material

Plastic with overmold

Mount Threading

1/4-20

Operating temperature

14° F / -10° C ~1 22° F / 50° C

Range

Up to 100ft

Weight

1.4lbs

Width

2.2''

Included Components

1 12V Max Lithium-Ion 2.0 Ah Battery, 1 12V Max Lithium-Ion Battery Charger, 1 Ceiling Grid Clip, 1 GCL100-80C 12V Max Connected Cross-Line Laser with Plumb Points, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target Plate, 1 RM 2 Mount
