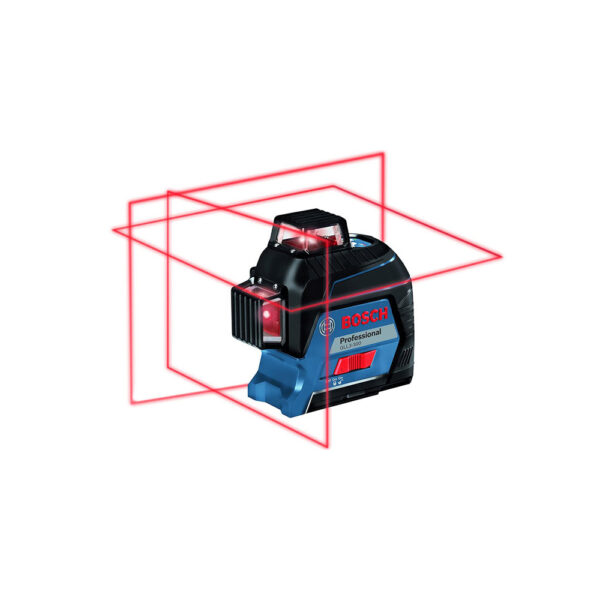

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser

Bosch

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser

Price: Price On Request

Part Number: GLL3-300

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser. Accuracy: Up to +/- 3/32-in at 30ft *Applies to intersection points. Dependent on external conditions Battery Voltage: 1.5V IP Rating: IP 54 Laser Diode: Class II, 630 650 nm

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser Description

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser features an all-in-one level and alignment solution providing fast one-spot job setup and allows users to line up level, align, square and plumb with one setup point by generating three 360° laser planes – one horizontal and two vertical. GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser features and upgraded diode with a brighter beam than previous generation lasers, has a visible range up to 200ft diameter and pulse mode extends the working range up to 300ft diameter and/or in bright lighting using the optional LR8 or LR6 receiver. GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser uses VisiMax™ technology for maximum line visibility, a robust over-molded construction to withstand rainy or dusty conditions and includes a BM1 positioning device that clips to multiple surfaces providing quick and easy setup.

Technical Specifications

Additional information

Part Number	GLL3-300
Accuracy	Up to +/- 3/32-in at 30ft *Applies to intersection points. Dependent on external conditions
Battery Voltage	1.5V
Height	5.6''
IP Rating	IP 54
Laser Diode	630 650 nm, Class II
Length	5.9''
Leveling Type	Self-Leveling, Up to 4°
Material	Plastic Composite
Mount Threading	1/4-20, 5/8-11
Operating temperature	14° F / -10° C up to 104° F / 40° C
Range	Up to 200ft diameter
Weight	1.8lbs
Width	3.3''
Included Components	1 BM1 Positioning Device, 1 GLL3-300 360° Three-Plane Leveling and Alignment-Line Laser, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target, 4 AA Batteries

Product Description

GLL3-300 Bosch 360 Degrees Three-Plane Leveling and Alignment-Line Laser

Technical Specifications

Additional information

Part Number	GLL3-300
Accuracy	Up to +/- 3/32-in at 30ft *Applies to intersection points. Dependent on external conditions
Battery Voltage	1.5V
Height	5.6''
IP Rating	IP 54
Laser Diode	630 650 nm, Class II
Length	5.9''
Leveling Type	Self-Leveling, Up to 4°
Material	Plastic Composite
Mount Threading	1/4-20, 5/8-11
Operating temperature	14° F / -10° C up to 104° F / 40° C
Range	Up to 200ft diameter
Weight	1.8lbs
Width	3.3''
Included Components	1 BM1 Positioning Device, 1 GLL3-300 360° Three-Plane Leveling and Alignment-Line Laser, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target, 4 AA Batteries
