Discontinued

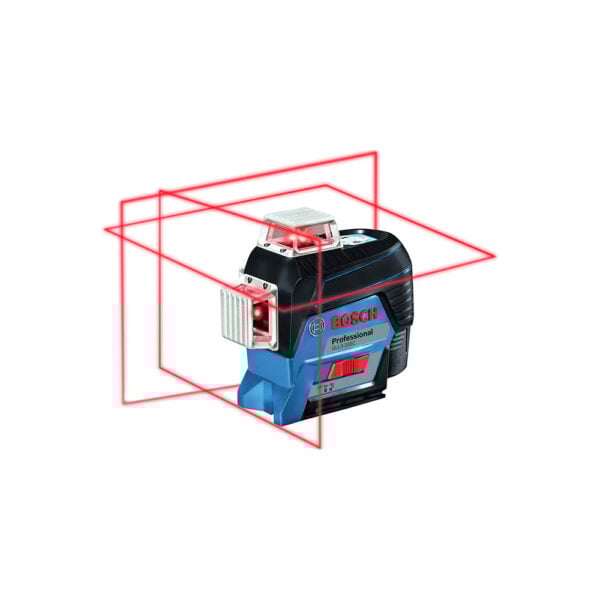

GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser. Battery Voltage: 12V IP Rating: IP 54 Laser Diode: Class II, 630 650 nm Leveling Type: Self-Leveling, Up to 4° Mount Threading: 1/4-20, 5/8-11
Discontinued
GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser provides all-in-one level and alignment solution for one-person job setup and generates three laser chalk lines in 360° laser planes – one horizontal and two vertical. GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser features Bluetooth® connectivity to control the setup from across the room with smart phone or the free Bosch Leveling Remote App. GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser offers dual power technology, including Bosch 12V Max Lithium-ion battery for extended runtime or 4 AA alkaline batteries.
GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser features a working range of up to 200ft diameter and pulse mode extending range up to 300ft with the optional LR6 or LR8 receiver. GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser features VisiMax™ Technology to drive maximum visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty conditions.
| Part Number | GLL3-330C |
|---|---|
| Accuracy | Up to +/- 3/32-in at 30ft *Applies to intersection points. Dependent on external conditions |
| Battery Voltage | 12V |
| Height | 5.8'' |
| IP Rating | IP 54 |
| Laser Diode | 630 650 nm, Class II |
| Length | 6.4'' |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic Composite |
| Mount Threading | 1/4-20, 5/8-11 |
| Operating temperature | 14° F / -10° C up to 104° F / 40° C |
| Range | Up to 200ft diameter |
| Weight | 2.0lbs |
| Width | 3.3'' |
| Included Components | 1 12V Max Lithium-Ion 2.0 Ah Battery, 1 12V Max Lithium-Ion Battery Charger, 1 AA1 Alkaline Battery Adapter, 1 BM 1 Positioning Device, 1 GLL3-330C 360° Connected Three-Plane Leveling and Alignment-Line Laser, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target |
GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser features a working range of up to 200ft diameter and pulse mode extending range up to 300ft with the optional LR6 or LR8 receiver. GLL3-330C Bosch 360 Degrees Connected Three-Plan Leveling and Alignment-Line Laser features VisiMax™ Technology to drive maximum visibility, CAL Guard for calibration assurance and robust over-molded construction to withstand rainy or dusty conditions.
| Part Number | GLL3-330C |
|---|---|
| Accuracy | Up to +/- 3/32-in at 30ft *Applies to intersection points. Dependent on external conditions |
| Battery Voltage | 12V |
| Height | 5.8'' |
| IP Rating | IP 54 |
| Laser Diode | 630 650 nm, Class II |
| Length | 6.4'' |
| Leveling Type | Self-Leveling, Up to 4° |
| Material | Plastic Composite |
| Mount Threading | 1/4-20, 5/8-11 |
| Operating temperature | 14° F / -10° C up to 104° F / 40° C |
| Range | Up to 200ft diameter |
| Weight | 2.0lbs |
| Width | 3.3'' |
| Included Components | 1 12V Max Lithium-Ion 2.0 Ah Battery, 1 12V Max Lithium-Ion Battery Charger, 1 AA1 Alkaline Battery Adapter, 1 BM 1 Positioning Device, 1 GLL3-330C 360° Connected Three-Plane Leveling and Alignment-Line Laser, 1 Hard Carrying Case, 1 Heavy-Duty Pouch, 1 Laser Target |
