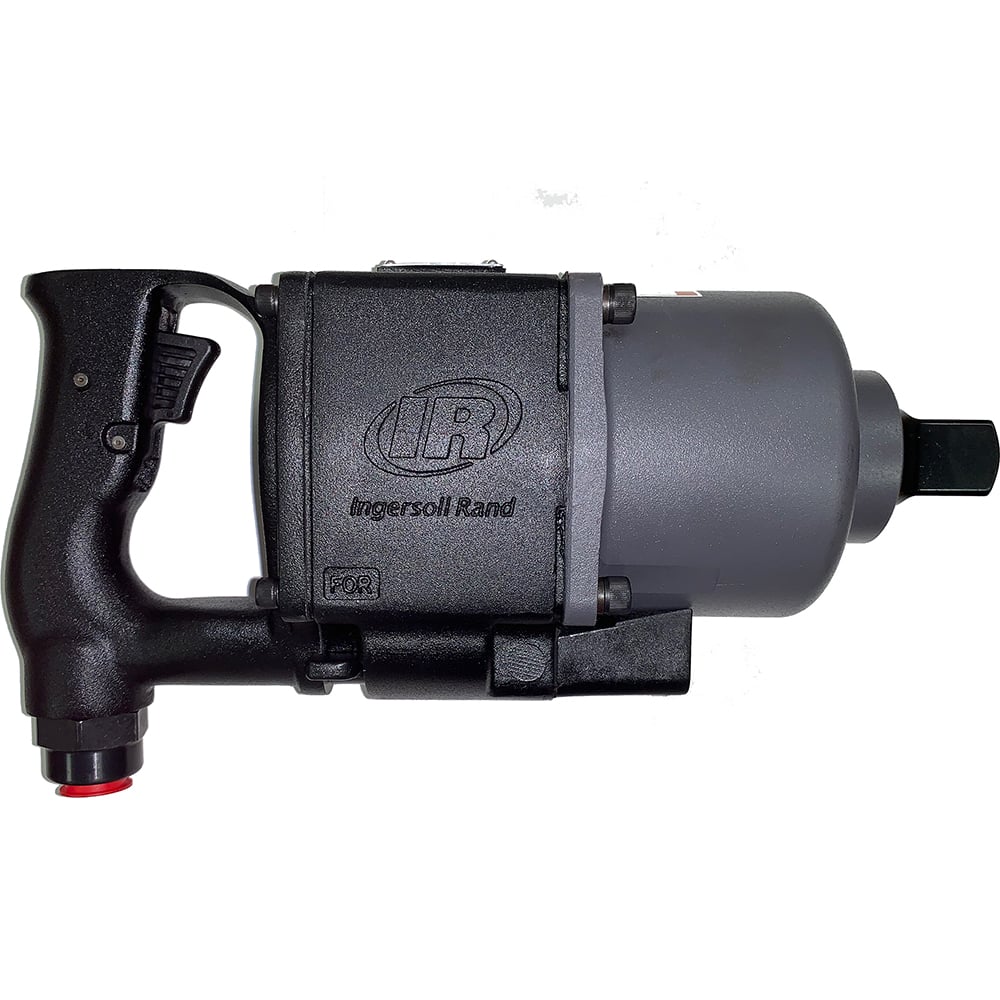

Ingersoll Rand 2906P1 500 ft-lbs Super Duty Pistol Grip Air Impact Wrench, 1/2” Square Drive. Actuation/Throttle Type/Switch Type: Trigger Air Inlet: 1/4” NPT Air Pressure (PSI): 90 PSI Anvil Length: Standard Average Air Consumption (cfm): 23 cfm
The Ingersoll Rand 2906P1 500 ft-lbs Super Duty Pistol Grip Air Impact Wrench, 1/2” Square Drive is a heavy duty impact wrench that has your back. This tool is safe, reliable and always ready to perform at its peak.
The 2906P1 Impact Wrench was built to last. Thanks to its steel hammer case and metal housing, this tool will work after multiple drops and harsh weather conditions. A finely tuned twin hammer impact mechanism and a reverse bias motor delivers 500 ft-lbs. Of max. Torque, and 1200 blows per minute. The square pin drive ensures provides the strongest connection to the socket to increase safety.
Product applications include heavy industry, oil & gas, and foundry.
The Ingersoll Rand 2906P1 500 ft-lbs Super Duty Pistol Grip Air Impact Wrench, 1/2” Square Drive is backed by a 1-year warranty for peace of mind.
| Part Number | 2906P1 |
|---|---|
| Actuation/Throttle/Switch | Trigger |
| Air Inlet | 1/4'' NPT |
| Air Pressure (psi) | 90 PSI |
| Anvil Length | Standard |
| Average Air Consumption cfm | 23 cfm |
| Average Air Consumption | 651 l/min |
| Blows Per Min | 1200 BPM |
| Color | Grey |
| Configuration/Handle Type | Pistol Grip |
| Drive Size | 1/2'' |
| Drive Type | Square |
| Duty Rating | Super Duty |
| End Plates | Steel |
| Exhaust Location | Bottom |
| Free Speed Sound Press/Power | 84.2 / 95.2 |
| Hammer Case | Steel |
| Housing Material | Aluminum |
| Impact Mechanism | Twin Hammer |
| Imp. Sound Press/Power Db(A) | 86.0 / 97.0 |
| Max Bolt Diameter | 9/16'' |
| Max Free Speed (rpm) | 5000RPM |
| Max Pressure | 6.2 bar |
| Max Torque | 500 ft-lbs / 6001 in-lbs / 678 Nm |
| Min. Hose Size | 3/8'' |
| Motor | Non-Biased |
| Number of Power Settings | 6 |
| Power Source | Air Powered |
| Power to Weight Ratio | 83.3 ft-lbs/lbs |
| Product Height | 3.39'' / 86mm |
| Product Length | 6.88'' / 175mm |
| Product Weight | 6lbs / 2.72kg |
| Product Width | 8.82'' / 224mm |
| Recom. Forward Torque Range | 40-350 ft-lbs / 480-4204 in-lbs / 54.2-475 Nm |
| Recommended Reverse Torque | 40-350 ft-lbs / 54.2-475 Nm |
| Retainer Type | Pin Detent |
| Side to Center Distance | 4.4'' / 112mm |
| Standards/Certifications | Cagi B186, Iso 11148-6, Iso 15744, Iso 28927-2 |
| Tool Type | Full-size |
| UPC | 6.63023E+11 |
| Vanes | 6 |
| Vibration Level (m/s2) | 7.6m/s2 |
| Warranty | 1-year |
