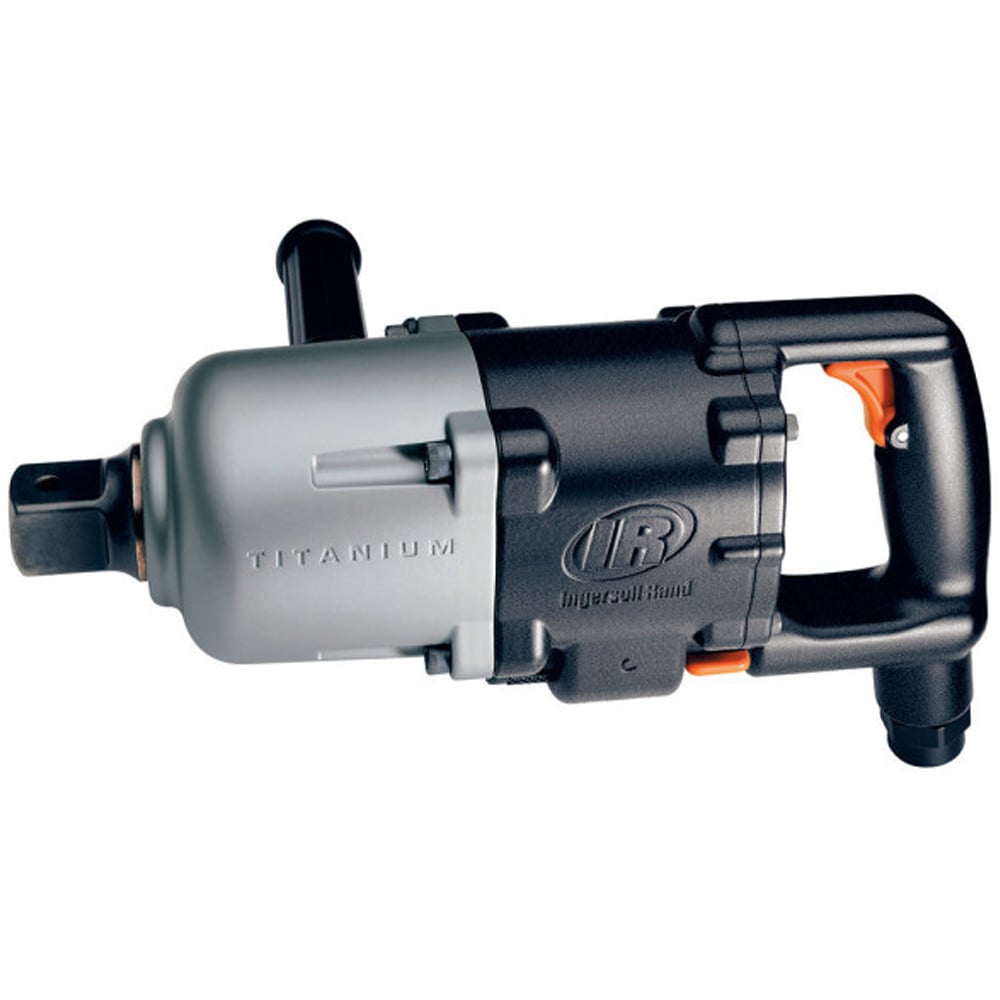

Ingersoll Rand 3955A2TI 5000 ft-lbs Super Duty D-Handle Outside Trigger Air Impact Wrench, 1-1/2” Square Drive. Actuation/Throttle Type/Switch Type: Outside Trigger Air Inlet: 1/2” NPT Air Pressure (PSI): 90 PSI Anvil Length: Standard
The Ingersoll Rand 3955A2TI 5000 ft-lbs Super Duty D-Handle Outside Trigger Air Impact Wrench, 1-1/2” Square Drive features a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs, making it one of the premier industrial grade impacts in the industry.
The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute. Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions. With its titanium hammer case and metal housing, this tool can withstand even the harshest conditions. The twin hammer mechanism ensures consistent power and balance. Uses a reverse bias motor to help remove the most stubborn bolts. Its pressure-fed mechanism lubrication ensures complete coverage throughout the tool. Features an integral muffler. Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
The Ingersoll Rand 3955A2TI 5000 ft-lbs Super Duty D-Handle Outside Trigger Air Impact Wrench, 1-1/2” Square Drive is backed by a 1-year warranty for peace of mind.
| Part Number | 3955A2TI |
|---|---|
| Actuation/Throttle/Switch | Outside Trigger |
| Air Inlet | 1/2'' NPT |
| Air Pressure (psi) | 90 PSI |
| Anvil Length | Standard |
| Average Air Consumption cfm | 80 cfm |
| Average Air Consumption | 2266 l/min |
| Blows Per Min | 700 BPM |
| Color | Grey |
| Configuration/Handle Type | D-Handle |
| Drive Size | 1-1/2'' |
| Drive Type | Square |
| Duty Rating | Super Duty |
| End Plates | Bronze |
| Exhaust Location | Bottom |
| Free Speed Sound Press/Power | 101.5 / 112.5 |
| Hammer Case | Titanium |
| Housing Material | Aluminum |
| Impact Mechanism | Twin Hammer |
| Imp. Sound Press/Power Db(A) | 101.2 / 112.2 |
| Max Free Speed (rpm) | 2750RPM |
| Max Pressure | 6.2 bar |
| Max Torque | 5000 ft-lbs / 60000 in-lbs / 6779 Nm |
| Min. Hose Size | 3/4'' |
| Motor | Reverse Bias |
| Number of Power Settings | Continuous |
| Power Source | Air Powered |
| Product Length | 16.5'' / 419mm |
| Product Weight | 34.6lbs / 15.69kg |
| Quiet Tool | No |
| Recom. Forward Torque Range | 3900 ft-lbs / 46803 in-lbs / 5288 Nm |
| Retainer Type | Thru-hole |
| Tool Type | High-Torque |
| UPC | 6.63023E+11 |
| Vibration Level (m/s2) | 20.8m/s2 |
| Vibration Uncertainy K* | 8.5m/s2 |
| Warranty | 1-year |
The Ingersoll Rand 3955A2TI 5000 ft-lbs Super Duty D-Handle Outside Trigger Air Impact Wrench, 1-1/2” Square Drive features a titanium hammercase, bronze end plates and torque up to 5,000 ft-lbs, making it one of the premier industrial grade impacts in the industry.
The 3900 Series delivers a high torque output of 5000 ft-lbs and 700 blows per minute. Thanks to the bronze end-plate and a corrosion preventative treatment, this tool is corrosion and wear resistant, which makes it great for outdoor conditions. With its titanium hammer case and metal housing, this tool can withstand even the harshest conditions. The twin hammer mechanism ensures consistent power and balance. Uses a reverse bias motor to help remove the most stubborn bolts. Its pressure-fed mechanism lubrication ensures complete coverage throughout the tool. Features an integral muffler. Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
Optimized for general industrial use, MRO, rail, heavy machinery, and shipbuilding.
The Ingersoll Rand 3955A2TI 5000 ft-lbs Super Duty D-Handle Outside Trigger Air Impact Wrench, 1-1/2” Square Drive is backed by a 1-year warranty for peace of mind.
| Part Number | 3955A2TI |
|---|---|
| Actuation/Throttle/Switch | Outside Trigger |
| Air Inlet | 1/2'' NPT |
| Air Pressure (psi) | 90 PSI |
| Anvil Length | Standard |
| Average Air Consumption cfm | 80 cfm |
| Average Air Consumption | 2266 l/min |
| Blows Per Min | 700 BPM |
| Color | Grey |
| Configuration/Handle Type | D-Handle |
| Drive Size | 1-1/2'' |
| Drive Type | Square |
| Duty Rating | Super Duty |
| End Plates | Bronze |
| Exhaust Location | Bottom |
| Free Speed Sound Press/Power | 101.5 / 112.5 |
| Hammer Case | Titanium |
| Housing Material | Aluminum |
| Impact Mechanism | Twin Hammer |
| Imp. Sound Press/Power Db(A) | 101.2 / 112.2 |
| Max Free Speed (rpm) | 2750RPM |
| Max Pressure | 6.2 bar |
| Max Torque | 5000 ft-lbs / 60000 in-lbs / 6779 Nm |
| Min. Hose Size | 3/4'' |
| Motor | Reverse Bias |
| Number of Power Settings | Continuous |
| Power Source | Air Powered |
| Product Length | 16.5'' / 419mm |
| Product Weight | 34.6lbs / 15.69kg |
| Quiet Tool | No |
| Recom. Forward Torque Range | 3900 ft-lbs / 46803 in-lbs / 5288 Nm |
| Retainer Type | Thru-hole |
| Tool Type | High-Torque |
| UPC | 6.63023E+11 |
| Vibration Level (m/s2) | 20.8m/s2 |
| Vibration Uncertainy K* | 8.5m/s2 |
| Warranty | 1-year |
