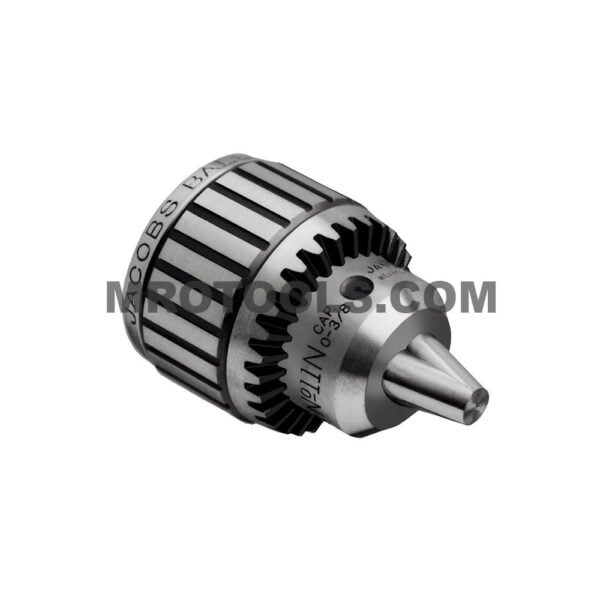

Jacobs ball bearing taper mount chuck. Chuck Size: 3/8” Model Number: 11N Minimum Capacity: 0.040” Maximum Capacity: 0.375” Mount: 2JT Key Number: K32 Closed Length: 2.88” Open Length: 2.26” Sleeve Diameter: 1.93”
Jacobs Ball Bearing Taper Mount Chuck Jacobs ball bearing taper mount chucks feature ball bearing construction that maximizes gripping force and drilling accuracy. Jacobs chuck jaws are center-ground for straightness and alignment. One-piece sleeve eliminates crack between driving teeth often found in other designs. Jacobs ball bearing taper mount chucks feature through-hardened sleeve teeth plus hardened nose and keyholes that provide outstanding wear resistance and feature fluted sleeve standard. Each Jacobs chuck is 100% inspected for performance and precision. T.I.R. 0.003” maximum at half capacity.
Chuck Size | 3/8'' |
---|---|
Model Number | 11N |
Minimum Capacity | 0.040'' |
Maximum Capacity | 0.375'' |
Mount | 2JT |
Key Number | K32 |
Closed Length | 2.88'' |
Open Length | 2.26'' |
Sleeve Diameter | 1.93'' |
UPC | 95456302150 |
Chuck Size | 3/8'' |
---|---|
Model Number | 11N |
Minimum Capacity | 0.040'' |
Maximum Capacity | 0.375'' |
Mount | 2JT |
Key Number | K32 |
Closed Length | 2.88'' |
Open Length | 2.26'' |
Sleeve Diameter | 1.93'' |
UPC | 95456302150 |
