JS470E Bosch Jigsaw – Top Handle (7.0 Amp). Amperage: 7.0 Bevel Angle Range: 45° Case Type: Hard plastic Category: Jig Saws Cutting Capacity- Soft Wood: 5-7/8” Cutting Capacity-Aluminum: 0.875 Cutting Capacity-Mild Steel: 0.375

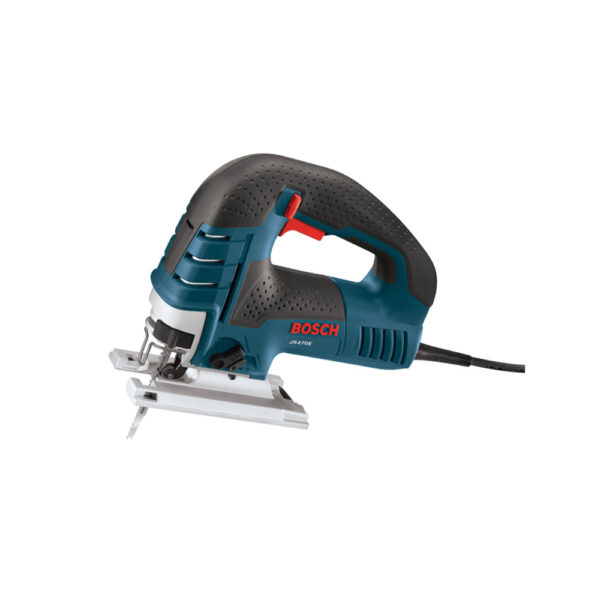

JS470E Bosch Jigsaw – Top Handle (7.0 Amp) The Bosch JS470E Top-Handle Jigsaw provides unsurpassed cut precision. Finish carpenters and kitchen and bath installers will appreciate the best-in-class 7.0 Amp motor and variable-speed control, making this saw an excellent choice for curve-cutting. A dial on the back of the tool controls the maximum speed and the accelerator trigger controls the operating speed.
Built with an aluminum gearbox and an insulated cover, this Jigsaw comes with a low-vibration plunging design and Constant Response circuitry for consistent speed under load. It has a large die-cast aluminum footplate. The JS470E’s multidirectional blade clamp delivers superior grip of T-shank blades (but it does not accept U-shank blades). The blade-ejection lever that eliminates need to touch hot blades. It has a dust blower for max cut-line visibility.
JS470E Bosch Jigsaw – Top Handle (7.0 Amp) Features
Amperage | 7 |
---|---|
Bevel Angle Range | 45° |
Case Type | Hard plastic |
Saw Category | Jigsaws |
Cutting Capacity- Soft Wood | 5-7/8'' |
Cutting Capacity-Aluminum | 0.875 |
Cutting Capacity-Mild Steel | 0.375 |
Dust Blower | Yes |
Dust Collection | Yes |
Height | 8.43'' |
Hertz | 60 |
Jigsaw Blade Type | Jigsaw T-Shank |
Length | 14.0'' |
Max. Bevel Capacity (°) | 45 |
Max. Bevel Cut | 45° |
No Load SPM | 100, 500-3 |
Rating | 120V |
Stroke Length | 1 |
Tool Level | 2 – Corded variable speed intermediate |
Voltage | 120V |
Weight | 5.6lb |
Width | 4.0'' |
