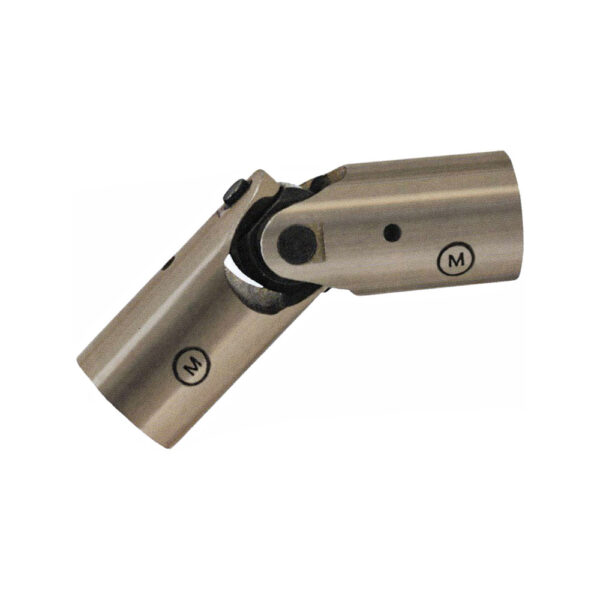

MS-20270-B14 Apex® Universal Joint, Light Duty, Bored Hub. Light-duty MS20270 mil spec universal joints have undergone qualification testing and meet or exceed the requirements of military specifications.
MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub has undergone qualification testing and meet or exceed the requirements of Military Specification MIL-J-6193 and Standard Drawing MS20270.
MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub are not adversely affected by fretting corrosion or Brinelling from vibration, shock loads or overloads. Used throughout aerospace, the military, industrial, construction and performance racing industries. Apex military standard universal joints can be ordered with or without protective lubrication covers. MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub requires minimal maintenance; in most cases, the original may last the service life of the vehicle or machine.
| (A) Diameter | 0.870'' / 22.10mm |
|---|---|
| (B) Overall Length | 3.000'' / 76.20mm |
| (C) Depth/Length | 0.937'' / 23.80mm |
| (D) Min | 1.031'' / 26.19mm |
| (E) Square A/C | N/A |
| (F) Square A/F | N/A |
| (G) Bore Diameter | 0.750'' / 19.05mm |
| (H) Hole Location | 0.875'' / 22.22mm |
| Weight Max (For B Config.) | 0.220lbs / 0.10kg |
| Angle | 0° |
| Torsional Play - Test Torque | 8 in-lbs / 0.904Nm |
| Torsional Play - Max Deg. | 0.46 |
MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub has undergone qualification testing and meet or exceed the requirements of Military Specification MIL-J-6193 and Standard Drawing MS20270.
MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub are not adversely affected by fretting corrosion or Brinelling from vibration, shock loads or overloads. Used throughout aerospace, the military, industrial, construction and performance racing industries. Apex military standard universal joints can be ordered with or without protective lubrication covers. MS-20270-B14 Apex Universal Joint, Light Duty, Bored Hub requires minimal maintenance; in most cases, the original may last the service life of the vehicle or machine.
| (A) Diameter | 0.870'' / 22.10mm |
|---|---|
| (B) Overall Length | 3.000'' / 76.20mm |
| (C) Depth/Length | 0.937'' / 23.80mm |
| (D) Min | 1.031'' / 26.19mm |
| (E) Square A/C | N/A |
| (F) Square A/F | N/A |
| (G) Bore Diameter | 0.750'' / 19.05mm |
| (H) Hole Location | 0.875'' / 22.22mm |
| Weight Max (For B Config.) | 0.220lbs / 0.10kg |
| Angle | 0° |
| Torsional Play - Test Torque | 8 in-lbs / 0.904Nm |
| Torsional Play - Max Deg. | 0.46 |
