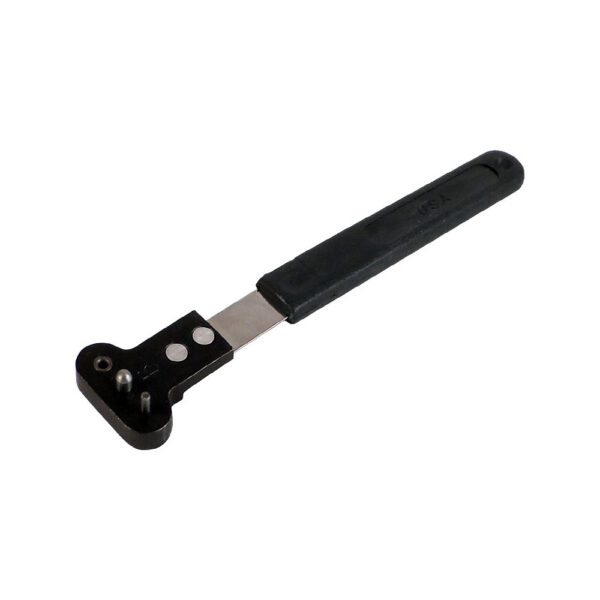

NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Omega Technologies

NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Price: $39.00

Part Number: NPJ518B

NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS). (C)Hole Spacing: 0.344” (J)Hole Spacing: 0.688” (P)Pilot Diameter: 0.1640” (K)Drill Size: #40

NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS) Description

NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518B Two-Lug Double Wing Standard Nut Plate Jig (DWS) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 45

Technical Specifications

Additional information

(C) Hole Spacing	0.344''
(J) Hole Spacing	0.688''
(P) Pilot Diameter	0.164''
(K) Drill Size	#40
Suitable for Nut Plates	AN366F-08, BACN10JR08, F5000-06, K1000-08, MS21047-08, MS21048-08, MS21049-08, MS21050-08, MS21059-08, MS21060-08, MS21077-08, MS21078-08, NA1-08, NAS1023A-08
Equivalent Part Numbers	AT518B
