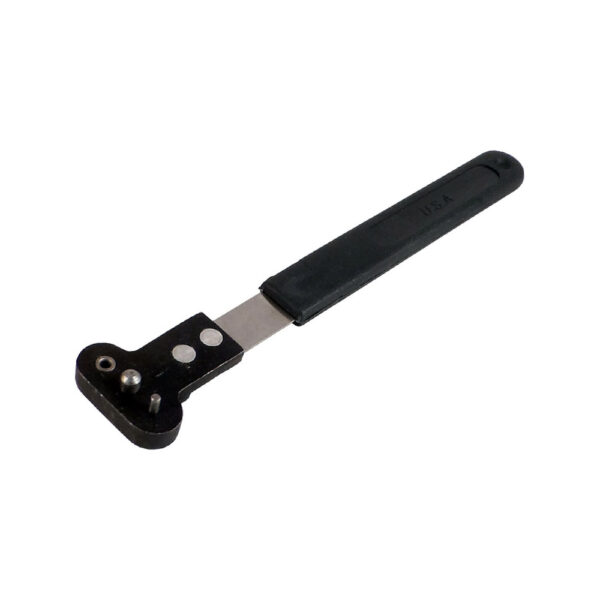

NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Omega Technologies

NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Price: $39.00

Part Number: NPJ518C

NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS). (C)Hole Spacing: 0.344” (J)Hole Spacing: 0.688” (P)Pilot Diameter: 0.1910” (K)Drill Size: #40

NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS) Description

NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518C Two-Lug Double Wing Standard Nut Plate Jig (DWS) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 45

Technical Specifications

Additional information

(C) Hole Spacing	0.344''
(J) Hole Spacing	0.688''
(P) Pilot Diameter	0.191''
(K) Drill Size	#40
Suitable for Nut Plates	AN366F-3, BACN10JB3, BACN10JR3, BACN10JT3, BACN10JZ3A-, BACN10KE3, BACN11G3A-X-X-XX, F5000-08, K1000-3, MS21047-3, MS21048-3, MS21049-3, MS21050-3, MS21059-3, MS21060-3, MS21077-3, MS21078-3, NA1-3, NAS1023A-3, NAS680N-3, ST3M443-3, ST3M719-3
Equivalent Part Numbers	AT518C
