NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Omega Technologies

NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Two-Lug Double Wing Standard Nut Plate Jigs (DWS)

Price: $39.00

Part Number: NPJ518D

NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS). (C)Hole Spacing: 0.500” (J)Hole Spacing: 1.000” (P)Pilot Diameter: 0.2480” (K)Drill Size: #40

NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS) Description

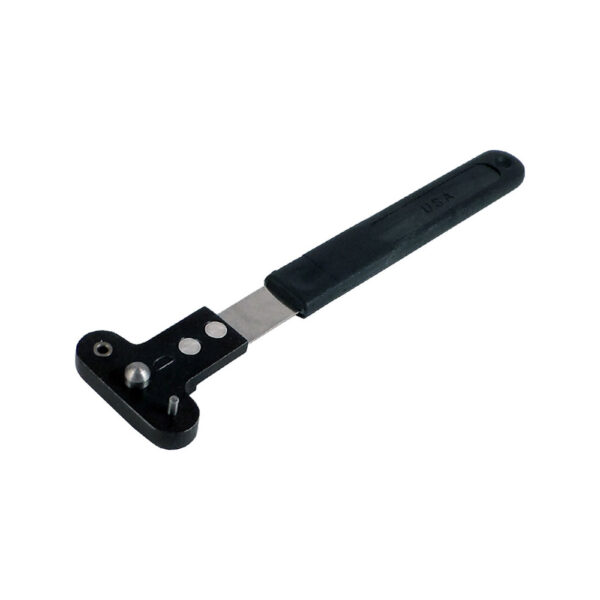

NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 45

Technical Specifications

Additional information

(C) Hole Spacing	0.5''
(J) Hole Spacing	1''
(P) Pilot Diameter	0.248''
(K) Drill Size	#40
Suitable for Nut Plates	AN366F-4, BACN10JB4, BACN10JR4, BACN10JT4, BACN10JZ3A-, BACN10KE4, BACN11G4A-X-X-XX, K1000-4, MS21047-4, MS21048-4, MS21049-4, MS21050-4, MS21059-4, MS21060-4, MS21077-4, MS21078-4, NA1-4, NAS1023A-4, NAS680N-4, ST3M443-4, ST3M719-4
Equivalent Part Numbers	AT518D

Product Description

NPJ518D Two-Lug Double Wing Standard Nut Plate Jig (DWS)

Omega Technologies Catalog Page: 45

Technical Specifications

Additional information

(C) Hole Spacing	0.5''
(J) Hole Spacing	1''
(P) Pilot Diameter	0.248''
(K) Drill Size	#40
Suitable for Nut Plates	AN366F-4, BACN10JB4, BACN10JR4, BACN10JT4, BACN10JZ3A-, BACN10KE4, BACN11G4A-X-X-XX, K1000-4, MS21047-4, MS21048-4, MS21049-4, MS21050-4, MS21059-4, MS21060-4, MS21077-4, MS21078-4, NA1-4, NAS1023A-4, NAS680N-4, ST3M443-4, ST3M719-4
Equivalent Part Numbers	AT518D
