NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Omega Technologies

NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Price: $39.00

Part Number: NPJ518NA

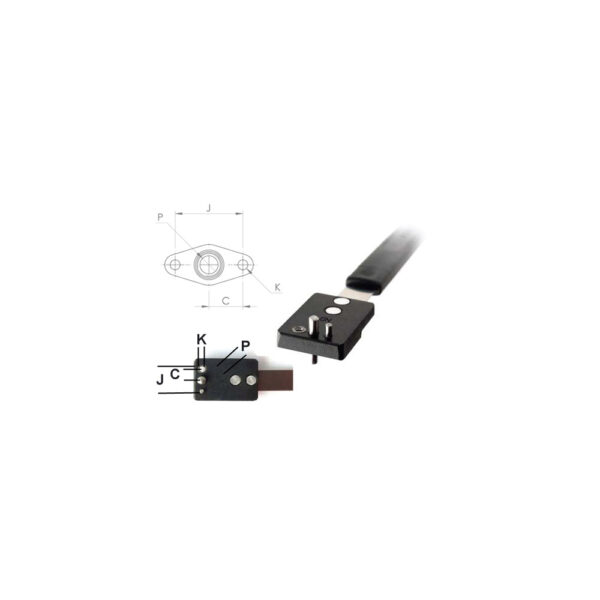

NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM). (C)Hole Spacing: 0.2030” (J) Hole Spacing: 0.4060” (P) Pilot Diameter: 0.1120” (K) Drill Size: #40

NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM) Description

NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 46

Technical Specifications

Additional information

(C) Hole Spacing	0.203''
(J) Hole Spacing	0.406''
(P) Pilot Diameter	0.112''
(K) Drill Size	#40
Suitable for Nut Plates	BACN10JN04, BACN10JP04, MK1000-04, MS21069-04, MS21070-04, MS21075-04, MS21076-04, NAS697N-04

Product Description

NPJ518NA Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Omega Technologies Catalog Page: 46

Technical Specifications

Additional information

(C) Hole Spacing	0.203''
(J) Hole Spacing	0.406''
(P) Pilot Diameter	0.112''
(K) Drill Size	#40
Suitable for Nut Plates	BACN10JN04, BACN10JP04, MK1000-04, MS21069-04, MS21070-04, MS21075-04, MS21076-04, NAS697N-04
