NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Omega Technologies

NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Price: $39.00

Part Number: NPJ518NB

NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM). (C)Hole Spacing: 0.2180” (J) Hole Spacing: 0.4360” (P) Pilot Diameter: 0.1390” (K) Drill Size: #40

NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM) Description

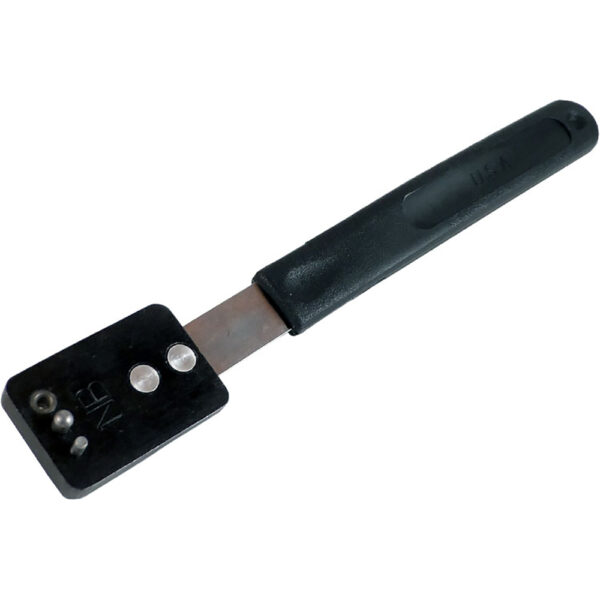

NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is designed to facilitate accurate rivet hole drilling for standard plate nuts (also known as Anchor Nuts Or Nut Plates). NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM) is manufactured to precise tolerances and include drill bushings to reduce wear and assure consistent hole-spacing. Each tool features an ergonomically designed handle with a flexible stainless spring blade, allowing for clearance while the jig is in use.

Omega Technologies Catalog Page: 46

Technical Specifications

Additional information

(C) Hole Spacing	0.218''
(J) Hole Spacing	0.436''
(P) Pilot Diameter	0.139''
(K) Drill Size	#40
Suitable for Nut Plates	BACN10JN06, BACN10JP06, MK1000-06, MS21069-06, MS21070-06, MS21075-06, MS21076-06, NAS697N-06

Product Description

NPJ518NB Two-Lug Double Wing Miniature Nut Plate Jig (DWM)

Omega Technologies Catalog Page: 46

Technical Specifications

Additional information

(C) Hole Spacing	0.218''
(J) Hole Spacing	0.436''
(P) Pilot Diameter	0.139''
(K) Drill Size	#40
Suitable for Nut Plates	BACN10JN06, BACN10JP06, MK1000-06, MS21069-06, MS21070-06, MS21075-06, MS21076-06, NAS697N-06
